IBIS Ripmo AF V2 - NEW

Ripmo AF

The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.

**Still waiting on pricing, contact if interested, Special order only 3-4 weeks delivery from order

**Working on a Formula build spec

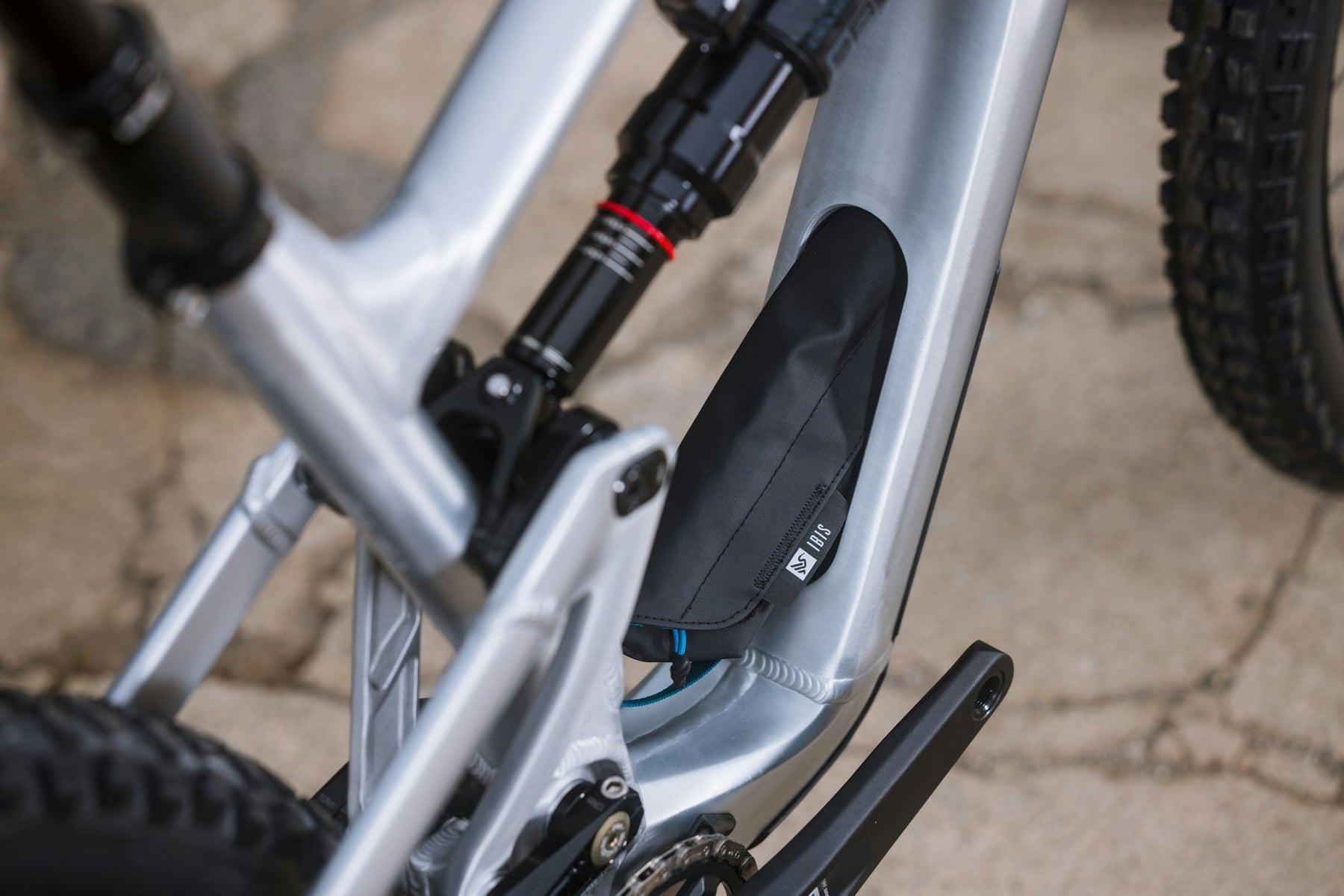

With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.

160mm Fork (575mm axle to crown)

Nominal Size		SM	MD	XM	LG	XL
Seat Tube	A	395	400	415	457	477
Top Tube	B	578	605	630	655	685
Head Tube	C	85	95	110	125	140
Chainstay 29"	D	435	435	436	438	440
Chainstay MX	D	432	432	433	435	437
Seat Tube Angle	E	77°	76.5°	76.5°	77°	77.5°
Saddle Height for Seat Tube Angle	F	650	700	745	790	830
Head Tube Angle	G	64.5°	64.5°	64.5°	64.5°	64.5°
Wheelbase	H	1195	1219	1249	1286	1329
Stack	I	616	622	633	643	654
Reach	J	436	456	478	506	540
BB Height*		338	341	344	349	350
BB Drop 29"	K	36	33	30	27	24
Standover	L	693	734	757	772	784
Recommended Seatpost Drop		140	170	185	213	213
Crank Length		165	165	170	170	170
Tire Size		2.35-2.5"	2.35-2.5"	2.35-2.5"	2.35-2.5"	2.35-2.5"
Water Bottle Size		1 x 26oz	1 x 26oz	1 x 26oz	1 x 26oz	1 x 26oz

*With Maxxis 29x2.4 WT tires = 748mm diameter, 27.5x2.5 WT rear tires = 708mm diameter.

Sizing Guide (Rider Height)

S - 5’0”–5’6” | M - 5’5”–5’9” | XM - 5’8”-6’ | L - 5’11–6’3” | XL - 6’2”–6’7”
