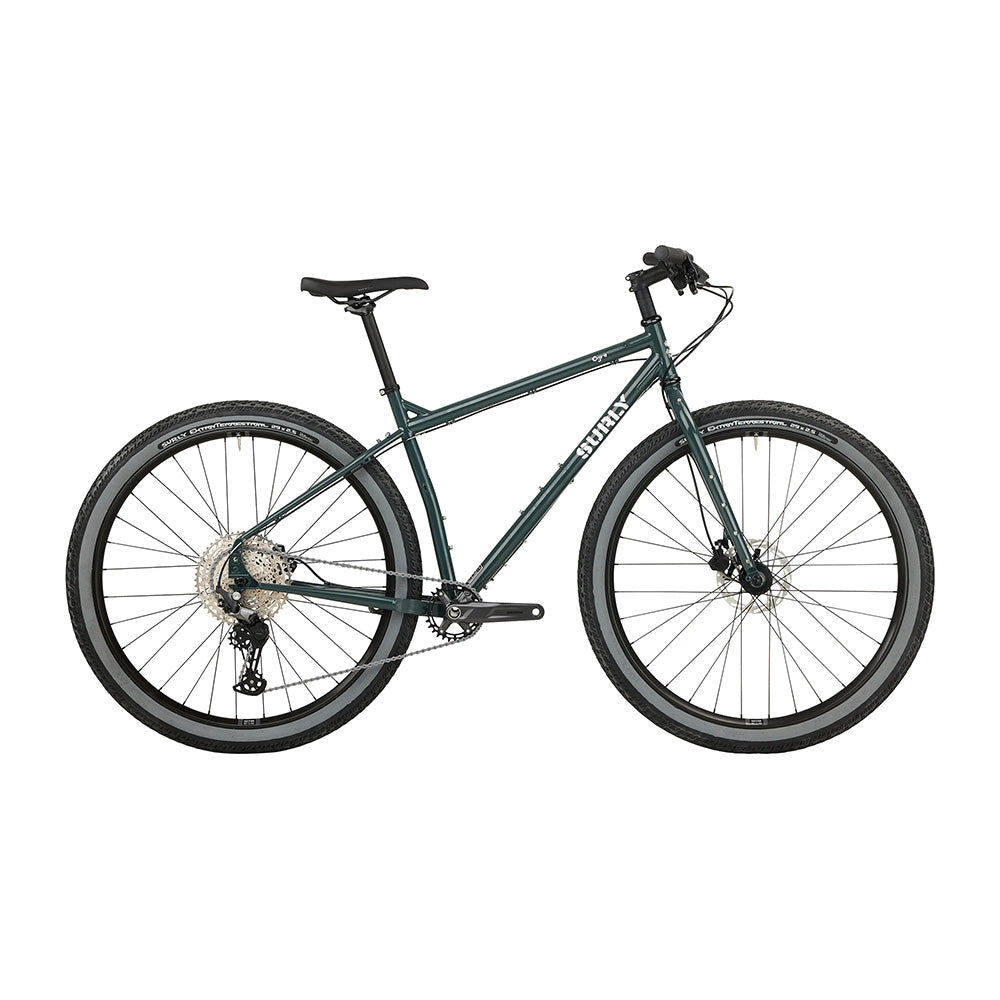

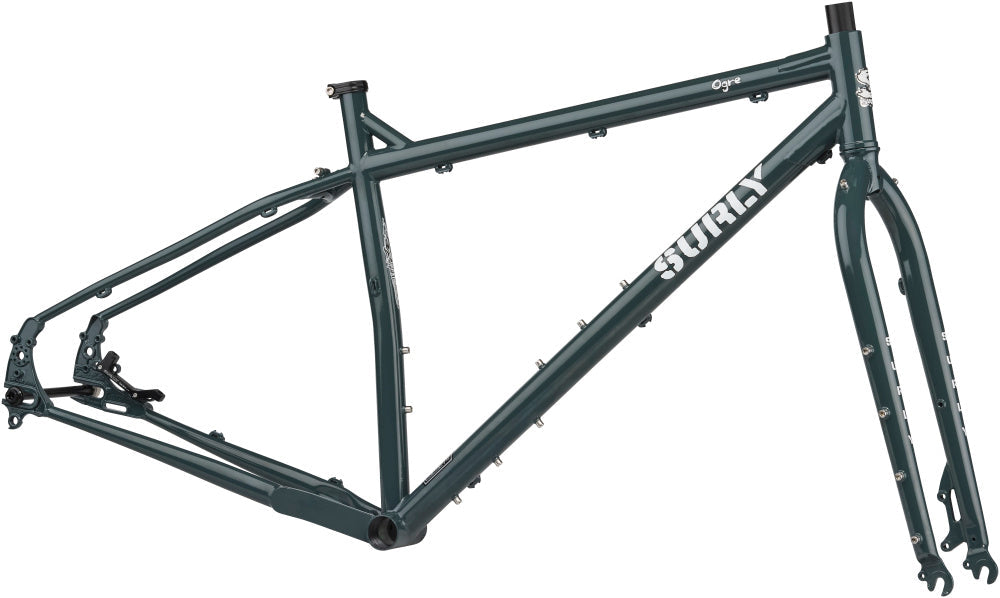

Surly Ogre Frameset - Orlok's Shadow

The Ogre is Surly's steel utility vehicle: equally suited to year-round commuting, gravel exploring, doubletrack and loaded bikepacking. It is not the lightest or most specialised frame here, but it is arguably the most adaptable. The huge tyre clearance, flexible Gnot-Boost rear end and almost excessive number of mounts mean it can be built around conventional gears, Rohloff, racks, cargo cages or even a trailer without forcing the bike into one narrow job.

Why this frame

• 29 x 2.5" or 27.5 x 2.8" tyre clearance with guards fitted
• Gnot-Boost rear end accepts 142mm or 148mm thru-axle hubs
• Dedicated Rohloff and Surly trailer compatibility
• Extensive rack, cargo, bottle and guard mounts
• Simple steel fork and threaded bottom bracket

Frame details

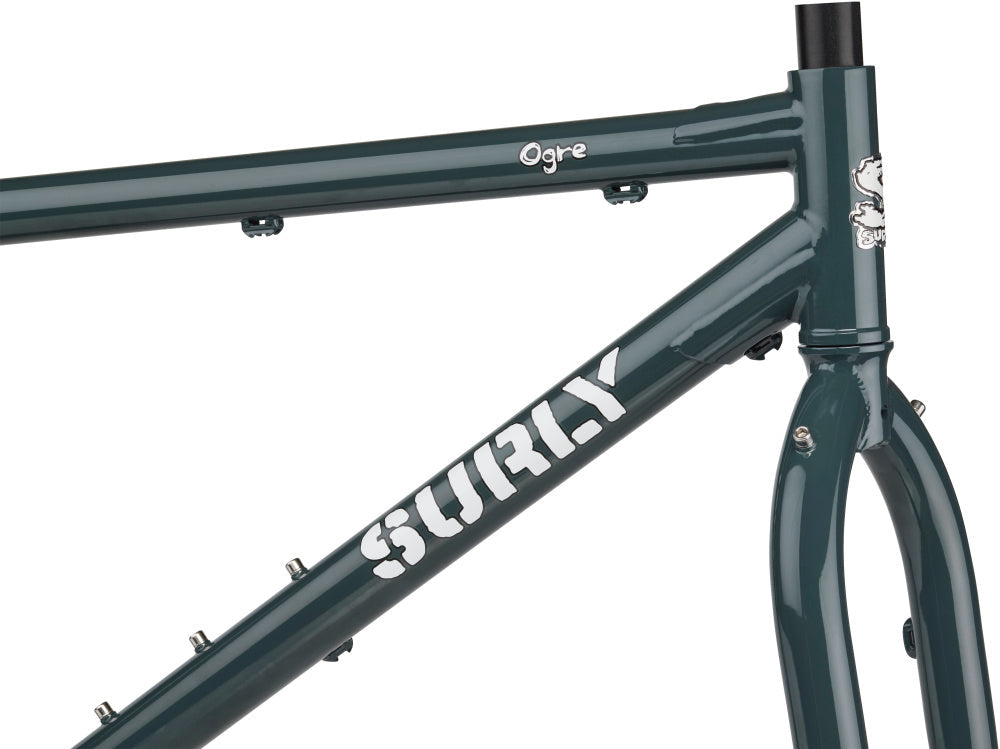

Frame: 4130 Surly Chromoly, Natch tubing, double-butted main triangle, TIG welded and E.D. coated
Fork: 4130 Surly Chromoly, double-butted tapered blades, 445mm axle-to-crown, 45mm offset

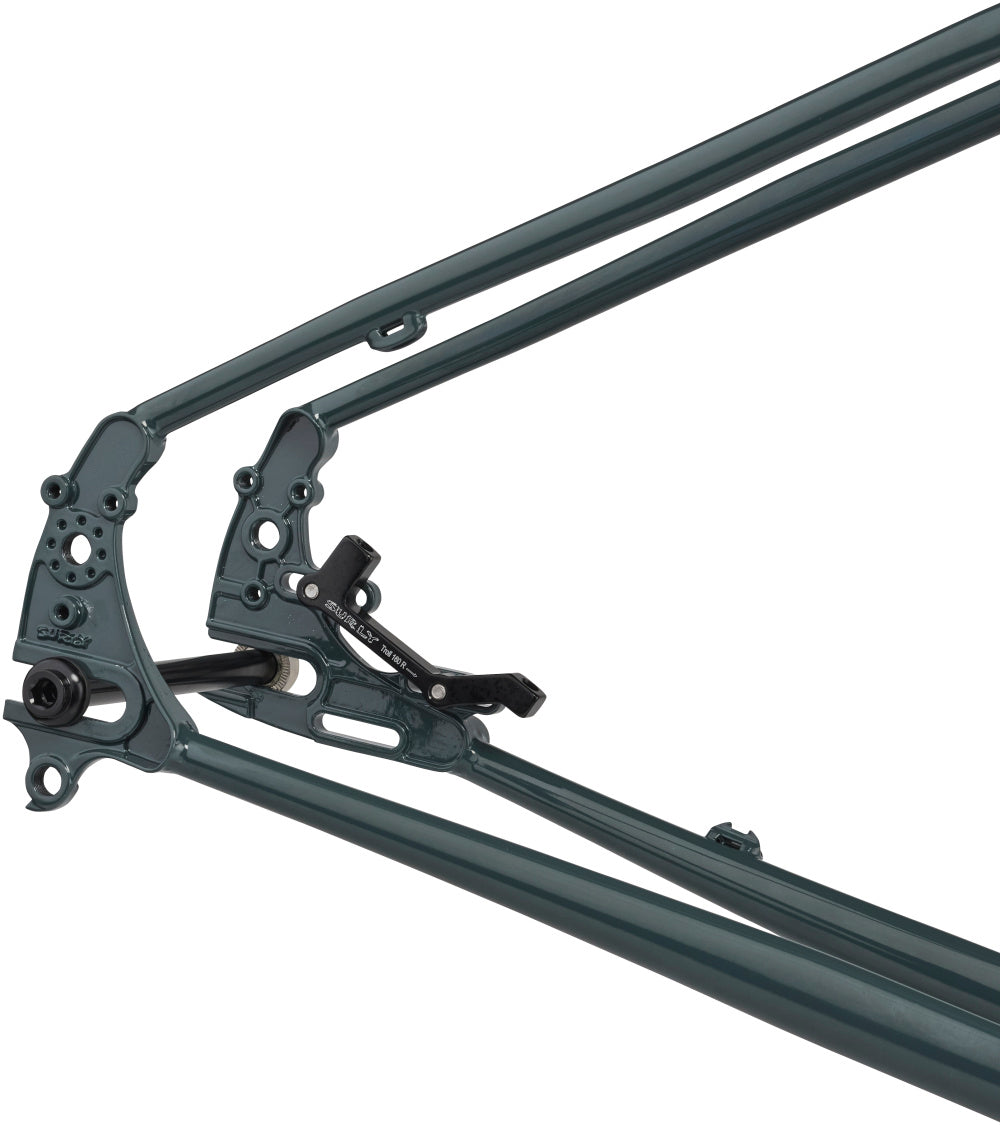

Rear end: Surly Gnot-Boost 145mm spacing with Rohloff torque-arm slot and Bill/Ted trailer mount
Rear axle compatibility: 12 x 142mm or 12 x 148mm; axle included
Front axle: 10 x 100mm QR
Head tube / headset: Straight 1-1/8"; EC34/28.6 upper and EC34/30 lower

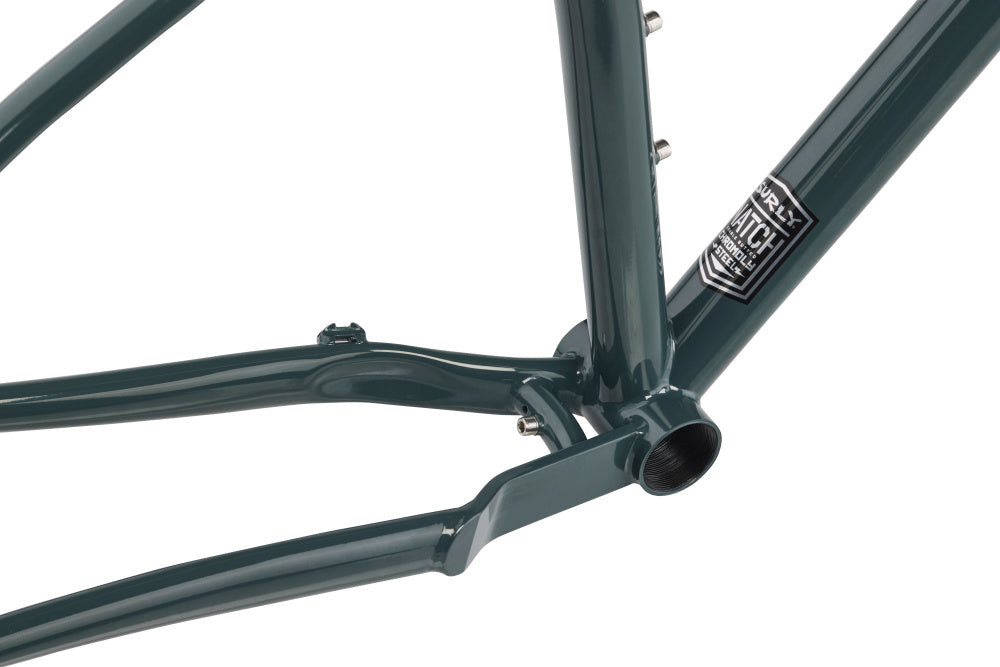

Bottom bracket: 73mm BSA threaded
Brake mounts: 51mm I.S.; up to 160mm rear and 203mm front rotors
Seatpost: 27.2mm
Seat clamp: 30.0mm Surly Stainless included
Front derailleur: High direct-mount, top-pull with 31.8mm clamp
Maximum chainring: 42T 1x mountain or 46T 1x Boost; selected 2x and 3x setups supported
Tyre clearance: Up to 29 x 2.5" or 27.5 x 2.8" with guards

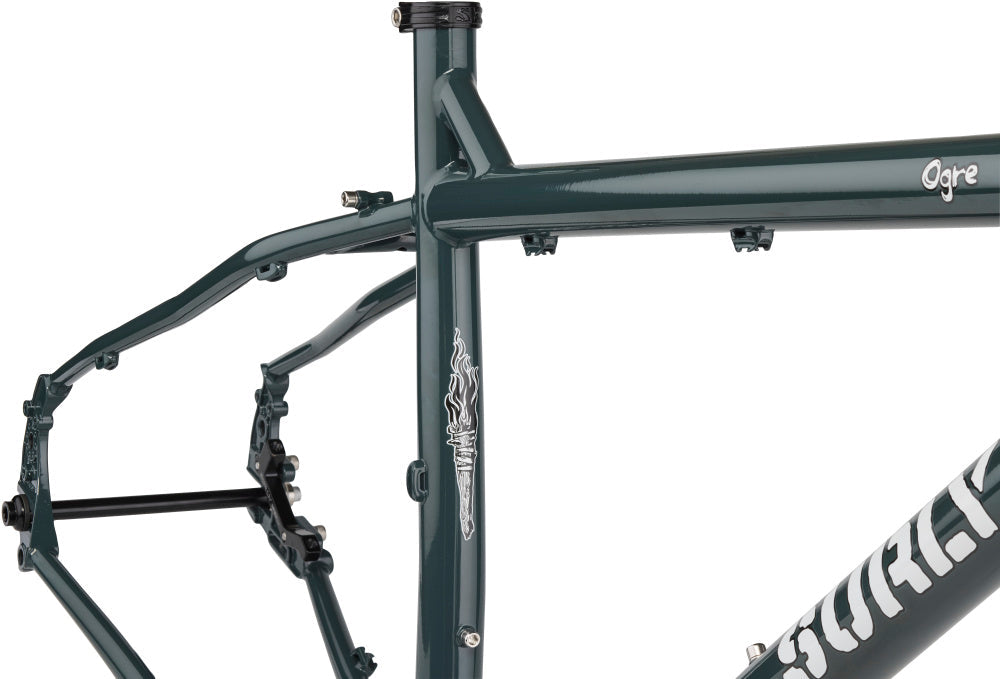

Frame mounts: Two Three-Pack mounts on S; one standard bottle mount plus two Three-Pack mounts on M-XL
Fork mounts: Two Four-Pack mounts plus upper, lower and mid-blade rack mounts
Rack and guard mounts: Front and rear
Special compatibility: Dedicated Rohloff cable routing and OEM2 axle-plate mount; dedicated Surly trailer mounts
Dropper routing: External only; no internal routing
Frameset weight: 9lb 5oz / 4.22kg for Medium
