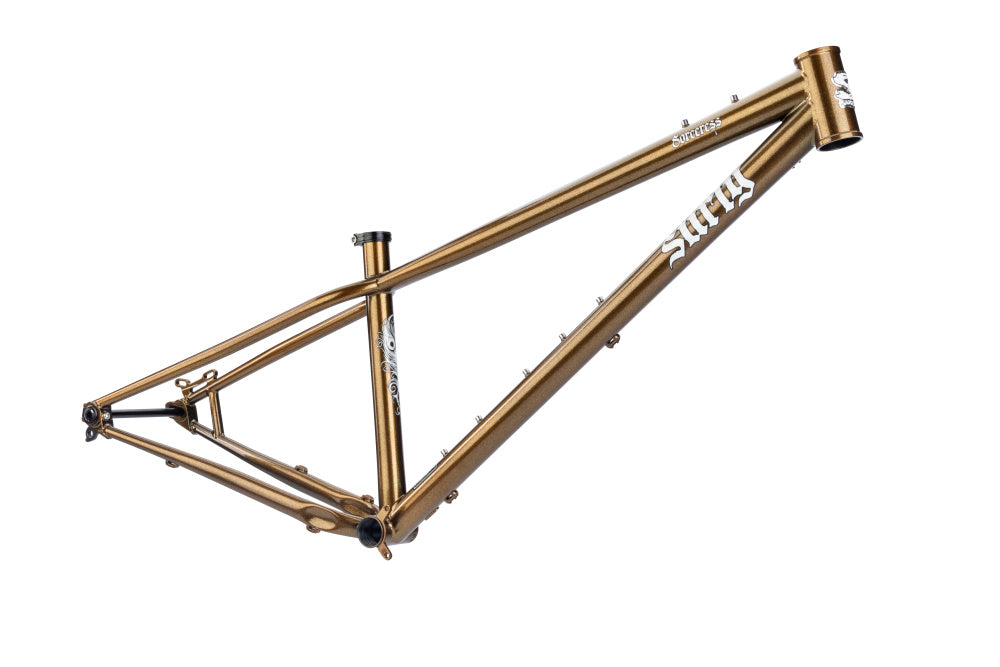

Surly Sorceress Frame - Hot Honey Bling

The Sorceress is a modern steel trail hardtail designed for proper singletrack rather than gentle gravel duties. The long front centre and slack head angle give it stability when the trail gets steep, while the steep seat angle keeps it in a strong climbing position. Low standover and room for long dropper posts leave plenty of space to move around the bike. The clever DUH dropout system also makes it unusually flexible, allowing a build with a conventional UDH derailleur, SRAM Full-Mount Transmission or a singlespeed setup.

Why this frame

• Modern trail geometry built around a 140mm fork
• DUH dropouts support UDH, Full-Mount and singlespeed builds
• Long dropper-post insertion and low standover
• 27.5" wheels on XS and 29" on S-XL
• Clearance for tyres up to 2.6"

Frame details

Frame: Surly Chromoly Natch tubing, double-butted main triangle with trumpet-flared tubes, TIG welded and E.D. coated; silicone chainstay protector included
Fork compatibility: Designed around a 140mm fork; fully extended geometry based on 533 x 44mm for XS and 553 x 44mm for S-XL

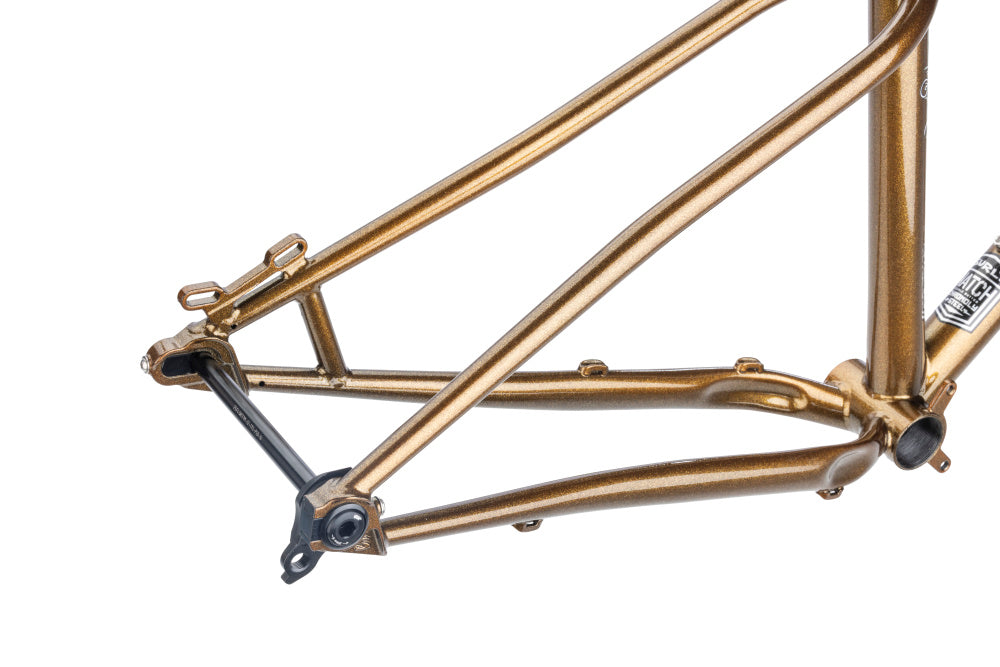

Dropouts: Surly DUH system with geared and singlespeed configurations included; compatible with SRAM UDH and Full-Mount Transmission
Rear axle: 12 x 148mm Boost; Surly singlespeed axle included
Head tube / headset: ZS44/28.6 upper and EC44/40 lower for a tapered steerer
Bottom bracket: 73mm BSA threaded
Brake mount: 51mm I.S.; up to 203mm rear rotor
Seatpost: 30.9mm
Seat clamp: 33.1mm Surly Stainless included
Dropper routing: Internal; maximum insertion XS 247mm, S 277mm, M 304mm, L 356mm, XL 408mm
Maximum chainring: 32T, 1x with 55mm chainline
Tyre clearance: Up to 27.5 x 2.6" on XS or 29 x 2.6" on S-XL
Bottle mounts: One Three-Pack mount on XS-S; one standard plus one Three-Pack mount on M-XL
Chain guide mount: Two-bolt ISCG-05
Frameset weight: 6lb 5oz / 2.86kg for Medium
