Crossworx DASH MK2
- If not in stock, orders take approx. 3-4 weeks to arrive
29’’ or MX Wheels | 160 mm rear travel
Enduro bike with race genes and excellent climbing capabilities? Our DASH290 is the ultimate key to your podium!
100% Handmade in Germany
Designed for the toughest tracks in the world, the DASH290 catapults you confidently into enduro heaven.
The driving fun will not let you go. With incredible performance, the DASH290 drives you relentlessly to the top, and is always ready for the drop in the next trail, flow all the way, the fastest time of your life.
NEW! All DASH & LITE MK2's come with interchangeable dropouts! see info below
*This listing is RAW Frame only, no shock, Please email through to order and we can confirm all details & and additional parts, additional parts & Complete build kits listed below.
*All Frames are order only and can take 4-8 weeks, see below for details
Available in radiant raw and 8 standard color's. Special color variants are available upon request for an upcharge of $350.

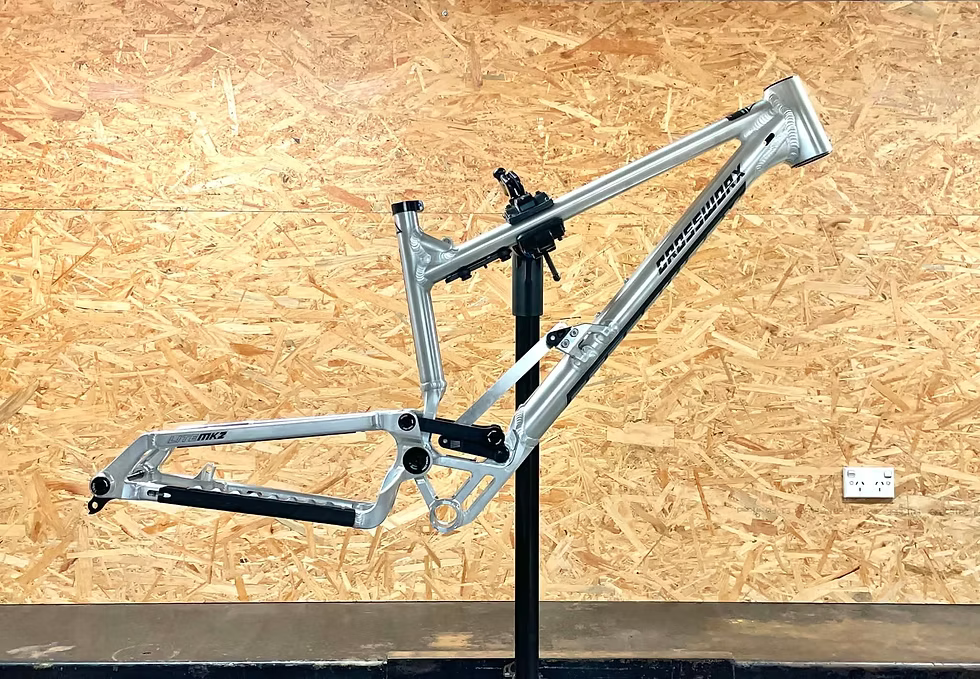

RADIANT RAW: take note, this really is raw. It is not a brushed or polished or clear coated raw. It is as the frame is after heat treatment and final BB and head tube facing. it will show all the imperfections of raw tubing and different shades of the raw aluminum material. This is really for those that love that RAW and industrial look. But also ideal if you want to brush or polish it your self.
8 standard color's:
- Yawning yellow
- Peaceful Petrol
- Racing Blue
- Vivacious Violet
- Beaming Black
- Gritty Grey
- Obese Orange
- Grassfresh Green
Note on stock and delivery times:
For any frame not in stock take note for delivery times: Crossworx lay out their production plan on the last day of the week for all ordered frames and produce the ordered frames in the following 1-2 weeks, if they have capacity. So frames can be ready at the end of that week for shipping. If a frame requires painting then it could take another 2 weeks.
Shipping from Germany is approx 2-4 weeks. So if we order a frame, expect turn around time to be around 4-8 weeks.
NEW! All DASH & LITE MK2's come with interchangeable dropouts!
Meaning you can run either 27.5 or 29 rear wheels, these drops outs change the chain stay length for each wheel to line up with the geo numbers listed below.
Drop outs are sold separately if desired and not listed as an option in this listing. Bike will come with drop outs to suits your chosen wheel size, but! now you can buy the drop outs and easily transform your bike.
Specifications
| Material | Aluminum 7020 |
| Travel front / rear | 170mm or 160mm / 160mm |
| Shock | 230×65 / 22,2x8mm |
| seat tube diameter | 30,9mm |
|
Minimum insertion seatpost |
100mm |
| seat clamp diameter | 34,9mm |
| Headset | ZS 44/56 |
| Bottom Bracket | BSA 73mm |
| Brake | PM 180 |
| max. brake disc size |
203 mm |
| Rear hub width | 12 x 148 mm |
| SRAM UDH Ready | Yes |
| Bottle cage | Yes |
| Fidlock Ready | Yes |
| ISCG05 | Yes |
| Dropper Post Ready | Yes |
| Max tire width | 29″ x 2,5″ |
| Weight (Raw, Size M) | 4,2 Kg |
|
Weight Complete Bike (Raw, Size L, Standard Configuration) |
15,3 Kg |
Geometry
| M | L | XL |
Mullet 29″/27,5″ |
|
| Body Height | 167,5 cm – 180 cm | 177,5 cm – 190 cm | 187,5 cm – 200 cm | |
| A – Horizontal Tube Length | 555 | 587 | 619 | |
| B – Reach | 450 | 480 | 510 | |
| C – Steering Angle | 65° | |||
| D – Seat Angle | 79° | |||
| E – Head Tube Length | 110 | 120 | 130 | |
| F – Chain Stay Length | 455 | 435 | ||
| G – Wheel Base | 1230 | 1264 | 1299 | -20 |
| H – Bottom Bracket Drop | 35 | 23,5 | ||
| I – Seat Tube Length | 415 | 445 | 470 | |
| J – seatpost offset | 13 | |||
| K – Fork Length | 571 | |||
| L – Stack | 632 | 641 | 650 | |
| M – Standover | 780 | 784 | 792 | |
| max. seatpost insert | 268 | 298 | 323 |
*All dimensions in mm unless otherwise stated

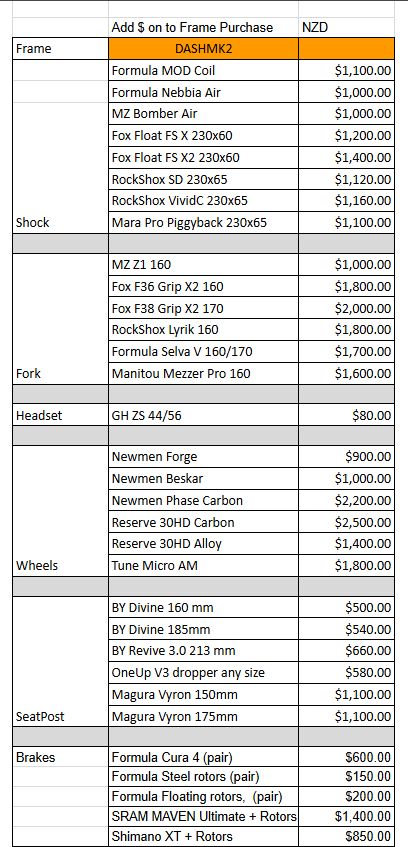

below are options for individual parts when purchased with a frame.
