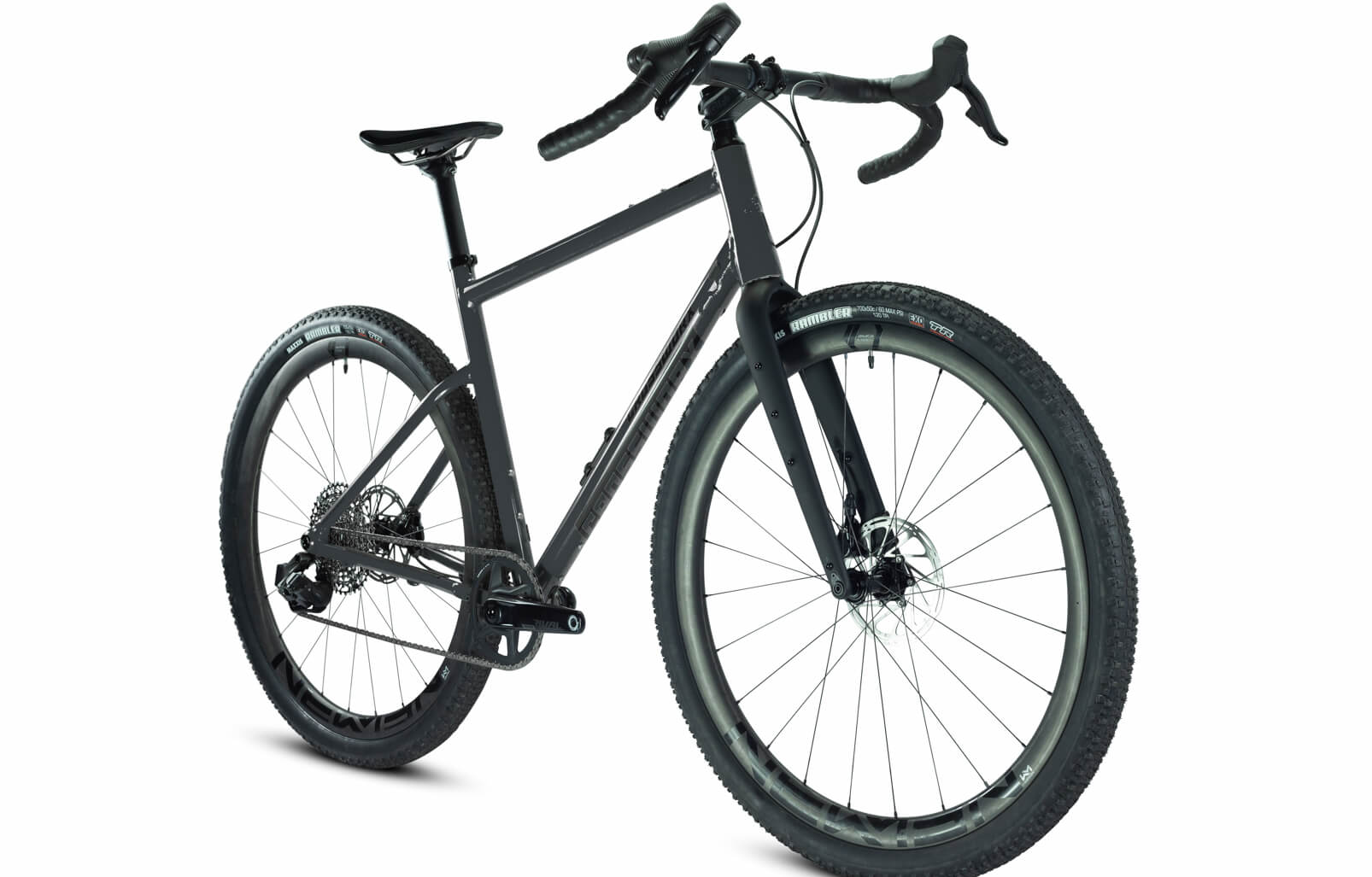

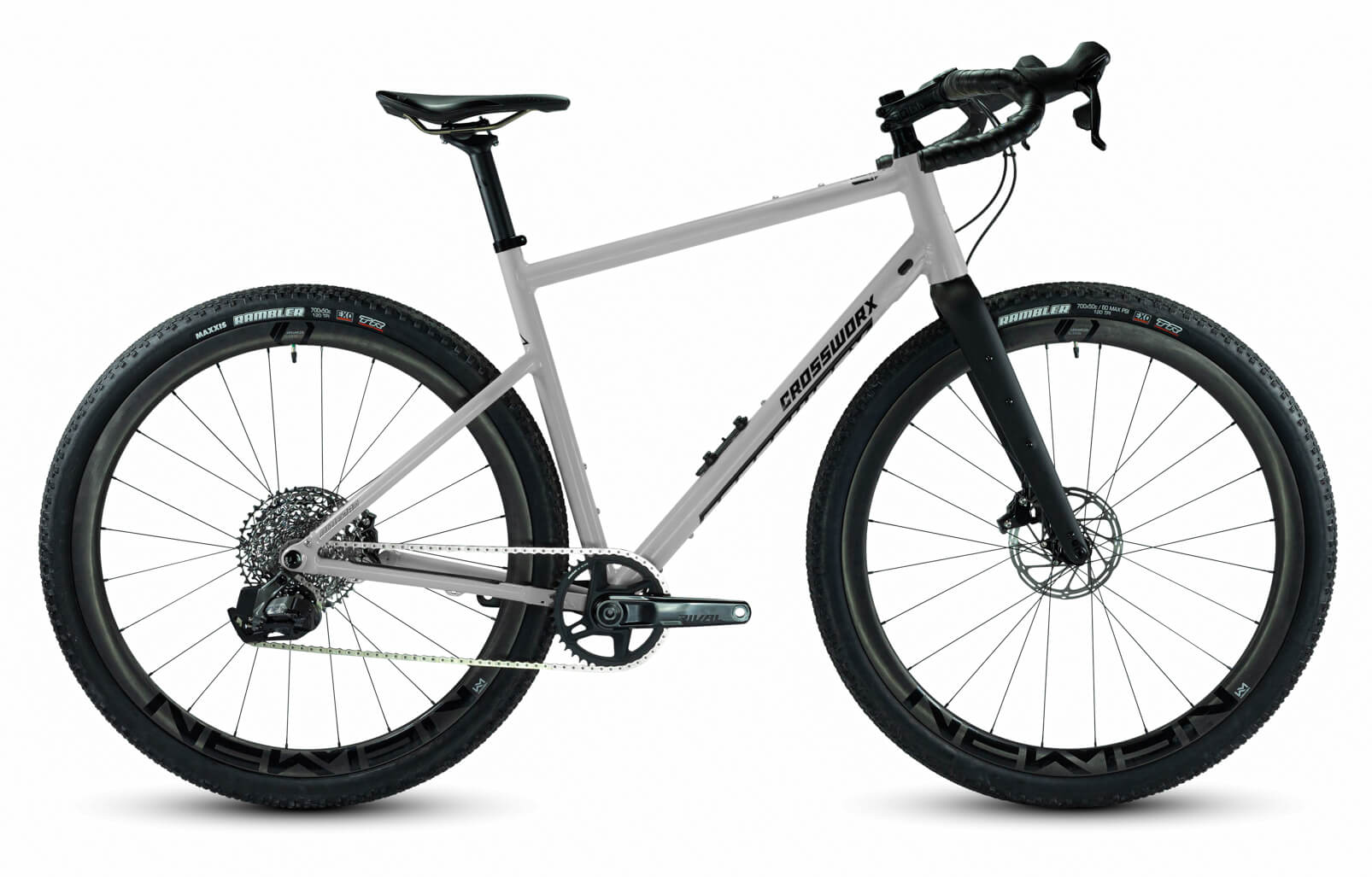

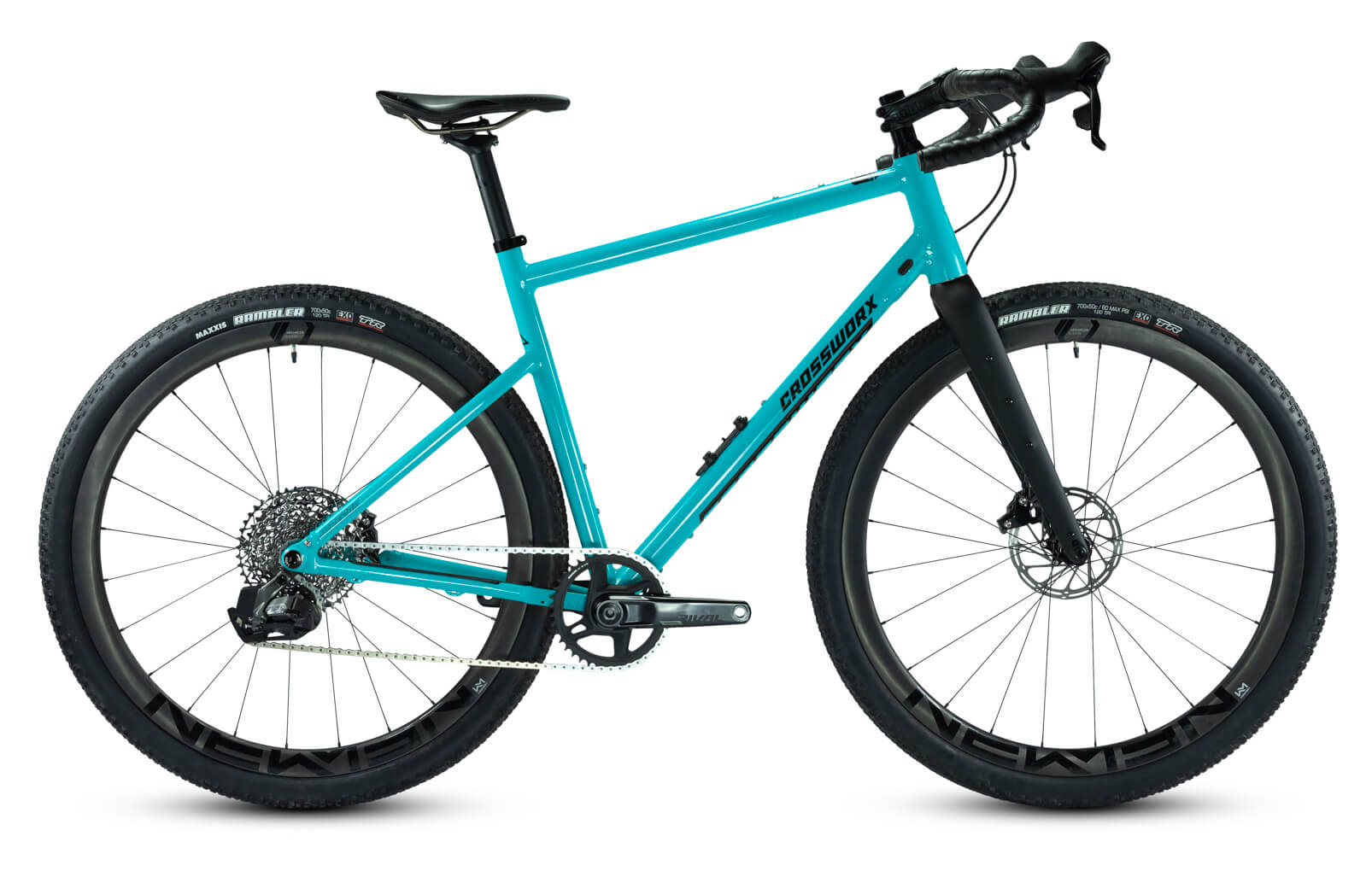

Crossworx RIDE 280 - Gravel
- If not in stock, orders take approx. 3-4 weeks to arrive
28″ Wheels | 0 to 50 mm front suspension travel
RIDE280. RIDE. Just Ride!
Nothing more to say – just having fun on two wheels. We can not hide our DNA. Clear shapes, coupled with our interpretation of Gravel, the CrossWorx RIDE280 is now your daily adventure bike.
Gravel bikes are specifically designed for use on unpaved roads, such as gravel or even trails, and besides to inspire bikepacking adventures and adventures of all kinds. This enormous versatility has convinced us to build our own interpretation of an absolute all-round talent!
Aluminium-Gravel-frame
Discover the heart of our RIDE280 – a lovely designed & built and of course robust aluminum frame.
Our RIDE280 aluminum frame offers the perfect combination of flexibility and high durability and reliability.
So this one is perfect for your gravel rides, adventures and any kind of trails.
Rigid or Suspension fork - Comfort & Safety
We definitely have our roots in MTB, so we have chosen the option of suspension forks up to 50 mm
travel at the front.
But of course there is also the possibility to install a rigid fork.
We will offer our RIDE with a Sour Business Carbon Fork as well.
However, suspension at the front can provide more reserves in demanding terrain and at the same time
allows you higher speeds. We’ve tested it and are
really happy with it.
Specifications
| Material | Aluminium 7020 |
| Travel front / rear | 0 – 50 mm / 0 mm |
| seat tube diameter | 31,6mm |
|
Minimum insertion seatpost |
100mm |
| seat clamp diameter | 34,9mm |
| Headset | IS 42/52 |
| Bottom Bracket | BSA 68mm |
| UDH Standard | Yes |

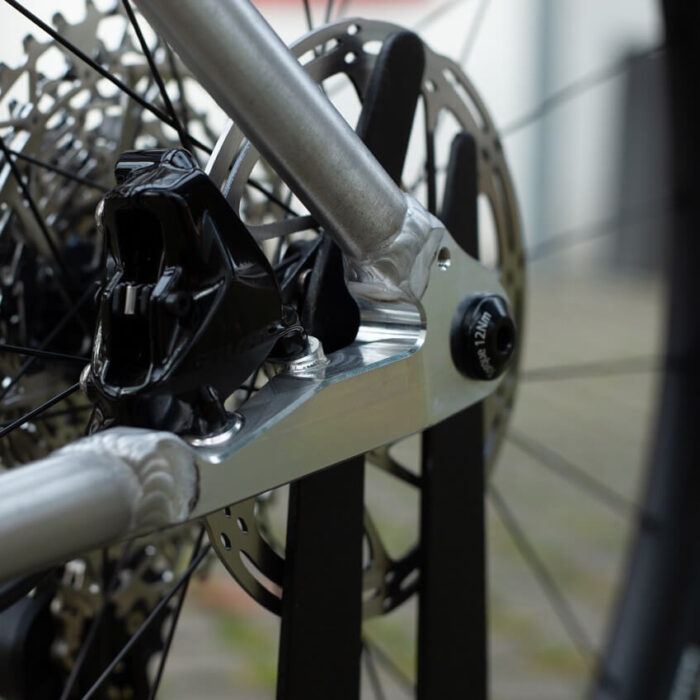

| Brake | FlatMount 160 |
| Drivetrain | 1x ( no front derailleur) |
| max chainring | 50 T |
| Rear hub width | 12 x 142 mm |

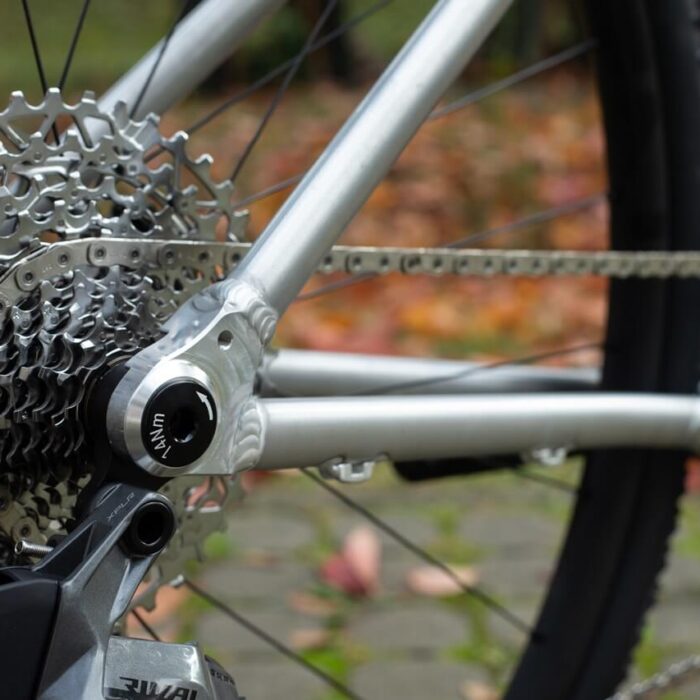

| SRAM UDH Ready | Yes |
| Bottle cage | Yes (3 Pieces) |
| Fidlock Ready | Yes |
| Dropper Post Ready | Yes |

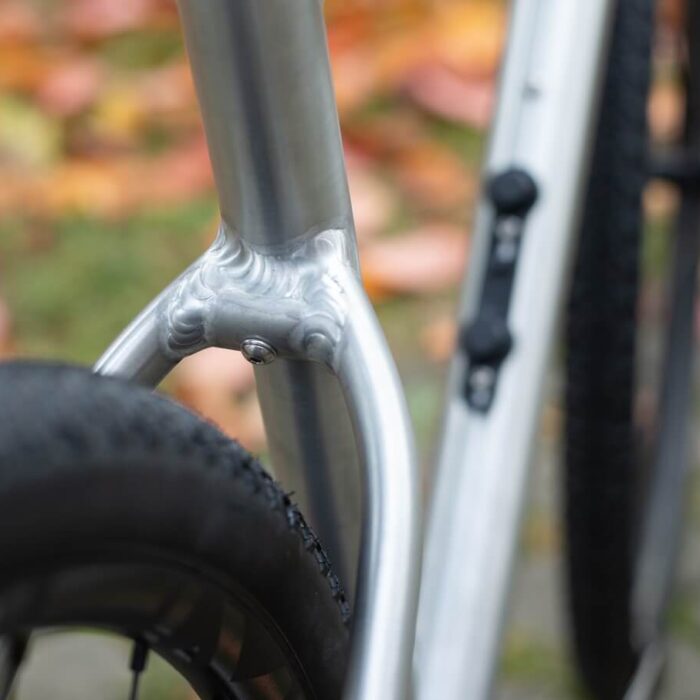

| Max tire width | 28″ x 2,0″ / 700 x 50 mm |
| Weight (Raw, Size M) | 1,8 Kg |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Body Height | 155 cm – 170 cm | 165 cm – 180 cm | 175 cm – 195 cm | 190 cm – 205 cm |
| A – Horizontal Tube Length | 542 | 562 | 583 | 603 |
| B – Reach | 375 | 390 | 405 | 420 |
| C – Steering Angle | 71° | |||
| D – Seat Angle | 74° | |||
| E – Head Tube Length | 140 | 160 | 180 | 200 |
| F – Chain Stay Length | 430 | |||
| G – Wheel Base | 1020 | 1042 | 1064 | 1085 |
| H – Bottom Bracket Drop | 75 | |||
| I – Seat Tube Length | 480 | 500 | 520 | 540 |
| K – Fork Length | 410 | |||
| L – Stack | 582 | 601 | 620 | 639 |
| M – Standover | 780 | 800 | 819 | 838 |
| max. seatpost insert | 270 | 290 | 310 | 330 |
*All dimensions in mm unless otherwise stated
