CrossWorx TRIP - E-bike
- If not in stock, orders take approx. 3-4 weeks to arrive
Trail & AM Light E-MTB
TRIP - Taking Orders Now
29’’ or 27.5/29 wheels | 140 mm travel
***Frame only options listed, Complete builds can be arranged
CrossWorx's Light E-Bike TRIP290 with 140 mm of travel. With unbeatable agility, responsive acceleration, and a low overall weight, you will master even the most technical trails both uphill and downhill. With discreet support from the motor, your next ride will become an experience without limits. Discover trails that you wouldn’t reach with a conventional bike. Discover the TRIP290 now and experience electrifying freedom on two wheels!
Nimble & agile
With the TRIP290, we are stepping onto the stage of Light-EBikes after nearly 2 years of development. Good things take time – but now it’s here!
Our TRIP290 features 140 mm of rear travel, enhanced by a 210 x 55 mm shock, delivering impressive suspension performance from the rear.
*All Frames are order only and can take 4-8 weeks, see below for details
*Currently we are only providing frames from Crossworx, but complete builds can be arranged.
*Our default shock option is either a Formula MOD coil or Nebbia air shock. But other shocks can be arranged on request. We can provide a deal on a Selva or Belva fork & Cura 4 brakes to match.
Available in radiant raw and 8 standard colours. Special colour variants are available upon request for an upcharge of $350.

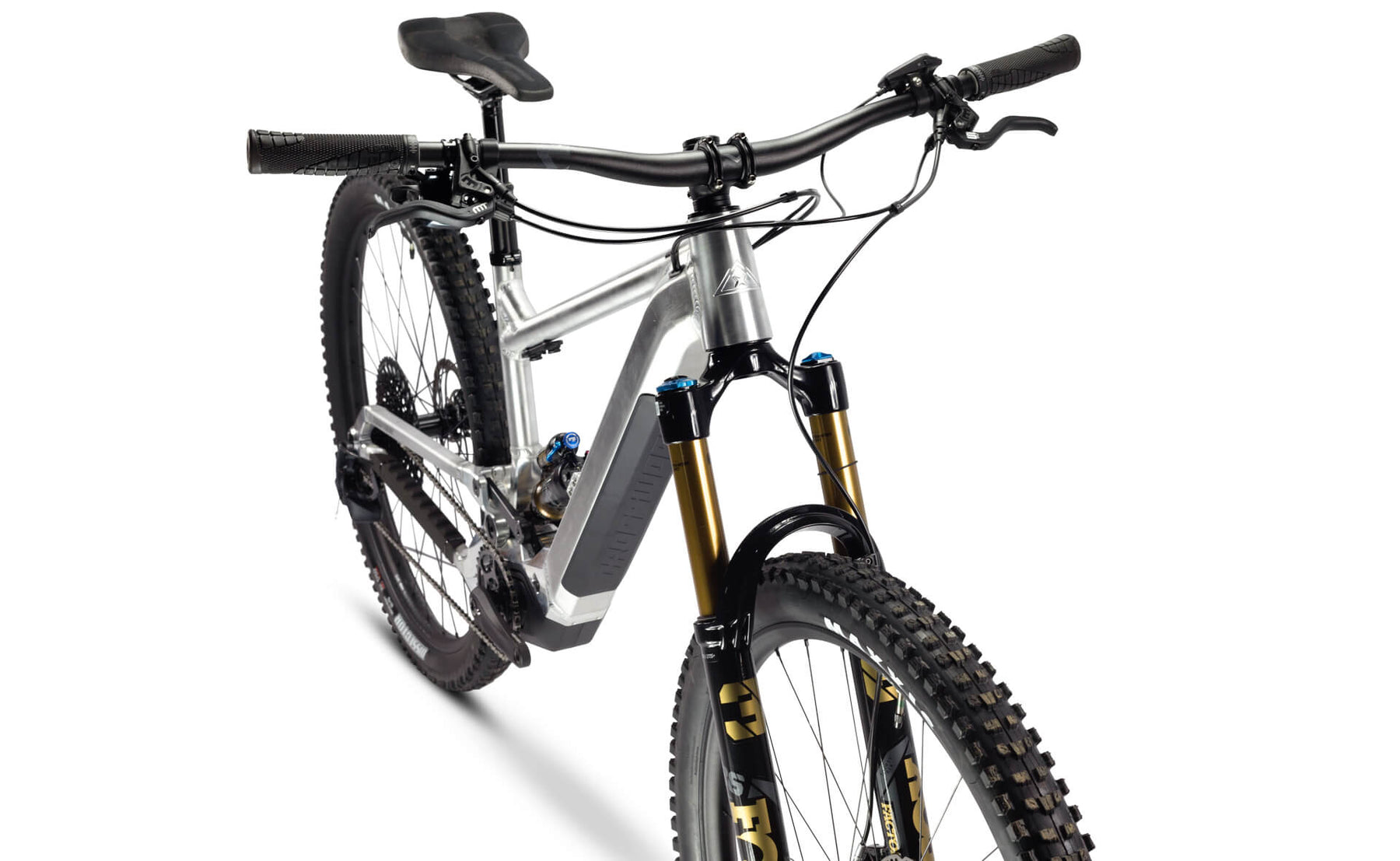

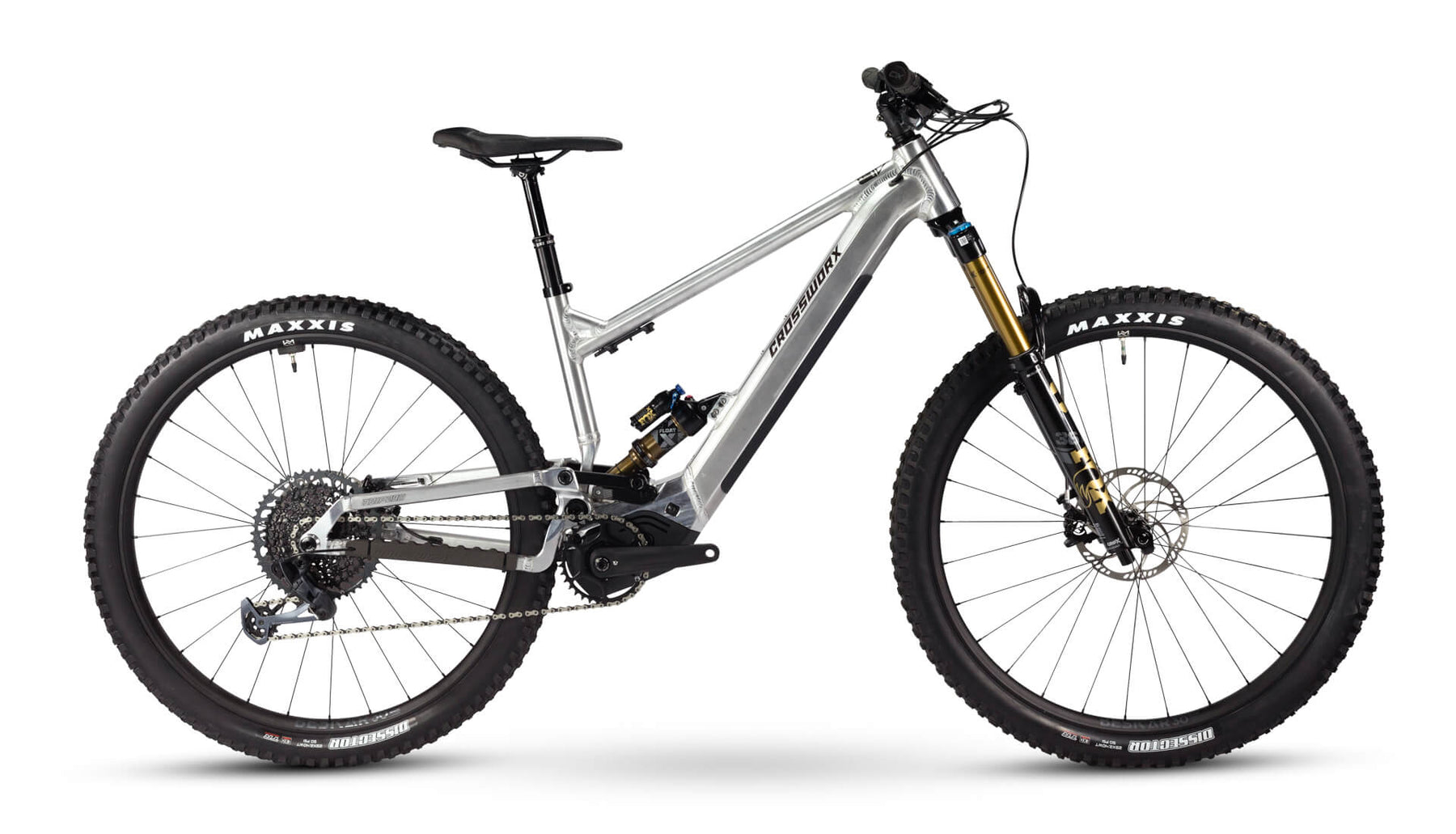

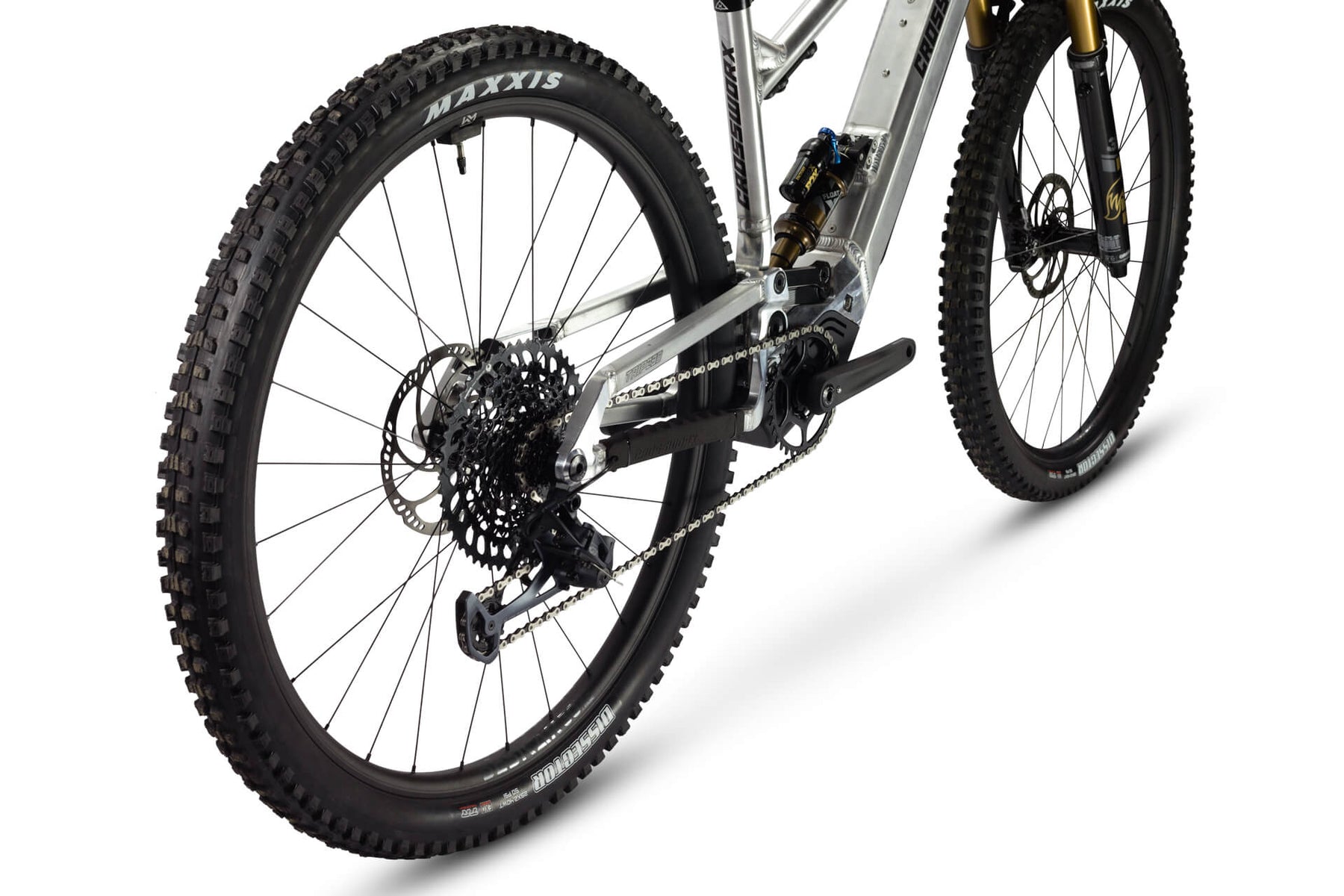

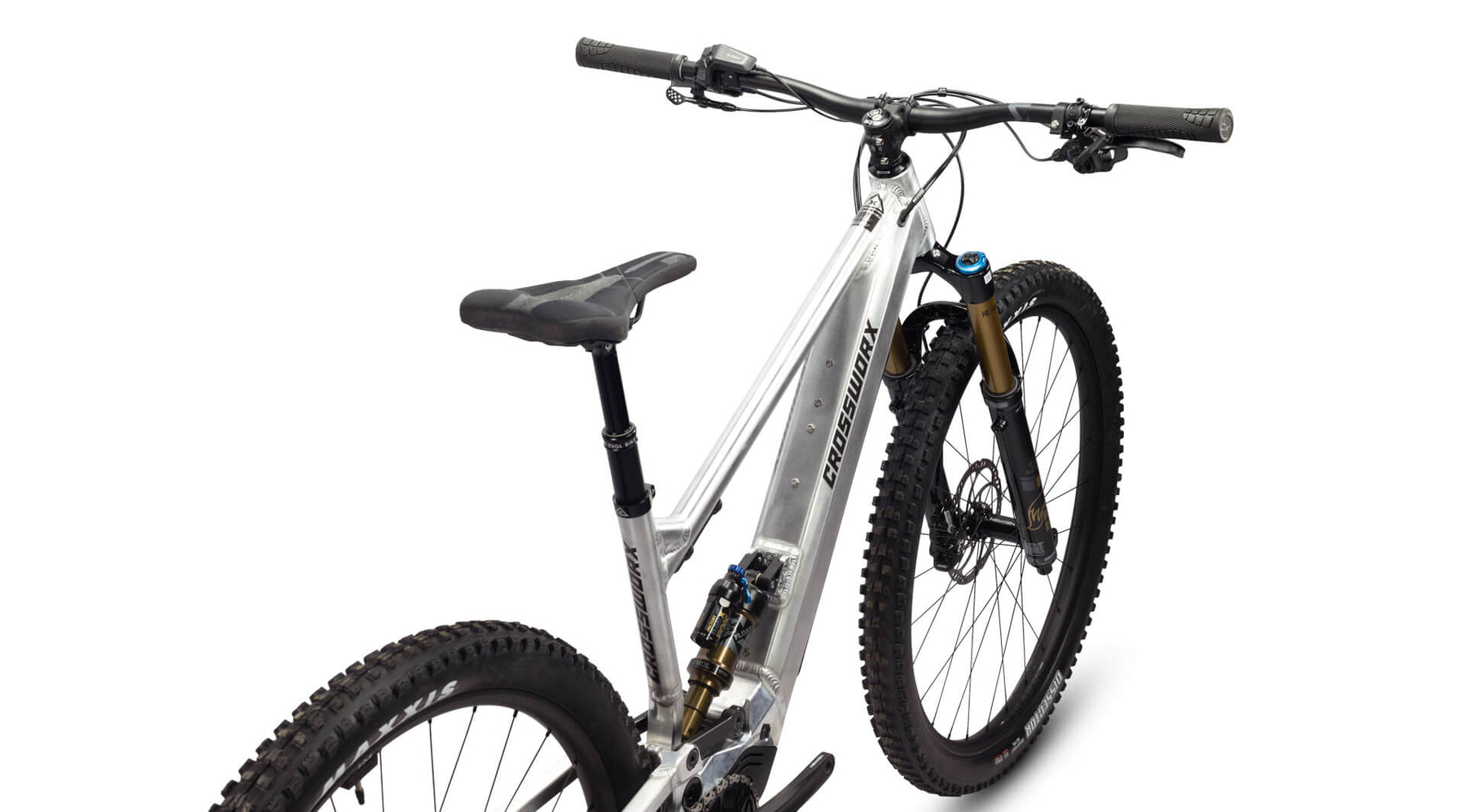

RADIANT RAW: take note, this really is raw. It is not a brushed or polished or clear coated raw. It is as the frame is after heat treatment and final BB and head tube facing. it will show all the imperfections of raw tubing and different shades of the raw aluminium material. This is really for those that love that RAW and industrial look. But also ideal if you want to brush or polish it your self.
8 standard colours:
- Yawning yellow
- Peaceful Petrol
- Racing Blue
- Vivacious Violet
- Beaming Black
- Gritty Grey
- Obese Orange
- Grassfresh Green
Note on stock and delivery times:
For any frame not in stock take note for delivery times: CrossWorx lay out their production plan on the last day of the week for all ordered frames and produce the ordered frames in the following 1-2 weeks, if they have capacity. So frames can be ready at the end of that week for shipping. If a frame requires painting then it could take another 2 weeks.
Shipping from Germany is approx 2-4 weeks. So if we order a frame, expect turn around time to be around 4-8 weeks.
Specification
| Material | Aluminium 7020 |
| Travel front / rear | 140mm or 150mm / 140mm |
| Shock / Bushing size | 210×55 / 22,2x8mm |
| Drivesystem | Bosch Performance Line SX |
| battery | 400wh Compacttube |
| seat tube diameter | 30,9mm |
|
Minimum insertion seatpost |
100mm |
| seat clamp diameter | 34,9mm |
| Headset | ZS 44/56 |
| Brake | PM 180 |
| max. brake disc size | 203 mm |
| Rear hub width | 12 x 148 mm |
| Bottle cage | 2 |
| Ranger Extender | Yes, 250 WH |
| ISCG05 | No |
| Dropper Post Ready | Yes |
| Max tire width | 29″ x 2,4″ |
| Weight (Raw, Size M) – Frame | 3,95 Kg |
| Weight (Raw, Size M) – Framekit incl. Motor | 8,35 Kg |
| Weight Bike (Raw M) |
starting at 18,5 Kg |
Geometry
| M | L | XL | Mullet 29″/27,5″ | |
|---|---|---|---|---|
| Body Height | 165 – 177,5 cm | 175 – 187,5 cm | 185 – 197,5 cm | |
| A – Horizontal Tube Length | 559 | 588 | 620 | |
| B – Reach | 450 | 480 | 510 | |
| C – Steering Angle | 65° | |||
| D – Seat Angle | 79° | |||
| E – Head Tube Length | 120 | 120 | 130 | |
| F – Chain Stay Length | 455 | 435 | ||
| G – Wheel Base | 1229 | 1259 | 1293 | |
| H – Bottom Bracket Drop | 40 | |||
| I – Seat Tube Length | 380 | 425 | 465 | |
| J – seatpost offset | 13 | |||
| K – Fork Length | 551 | |||
| L – Stack | 628 | 628 | 637 | |
| M – Standover | 784 | 785 | 789 | |
| max. seatpost insert | 191 | 236 | 276 |
*All dimensions in mm unless otherwise stated.
