Crossworx ZERO - Trail Hardtail
- If not in stock, orders take approx. 3-4 weeks to arrive

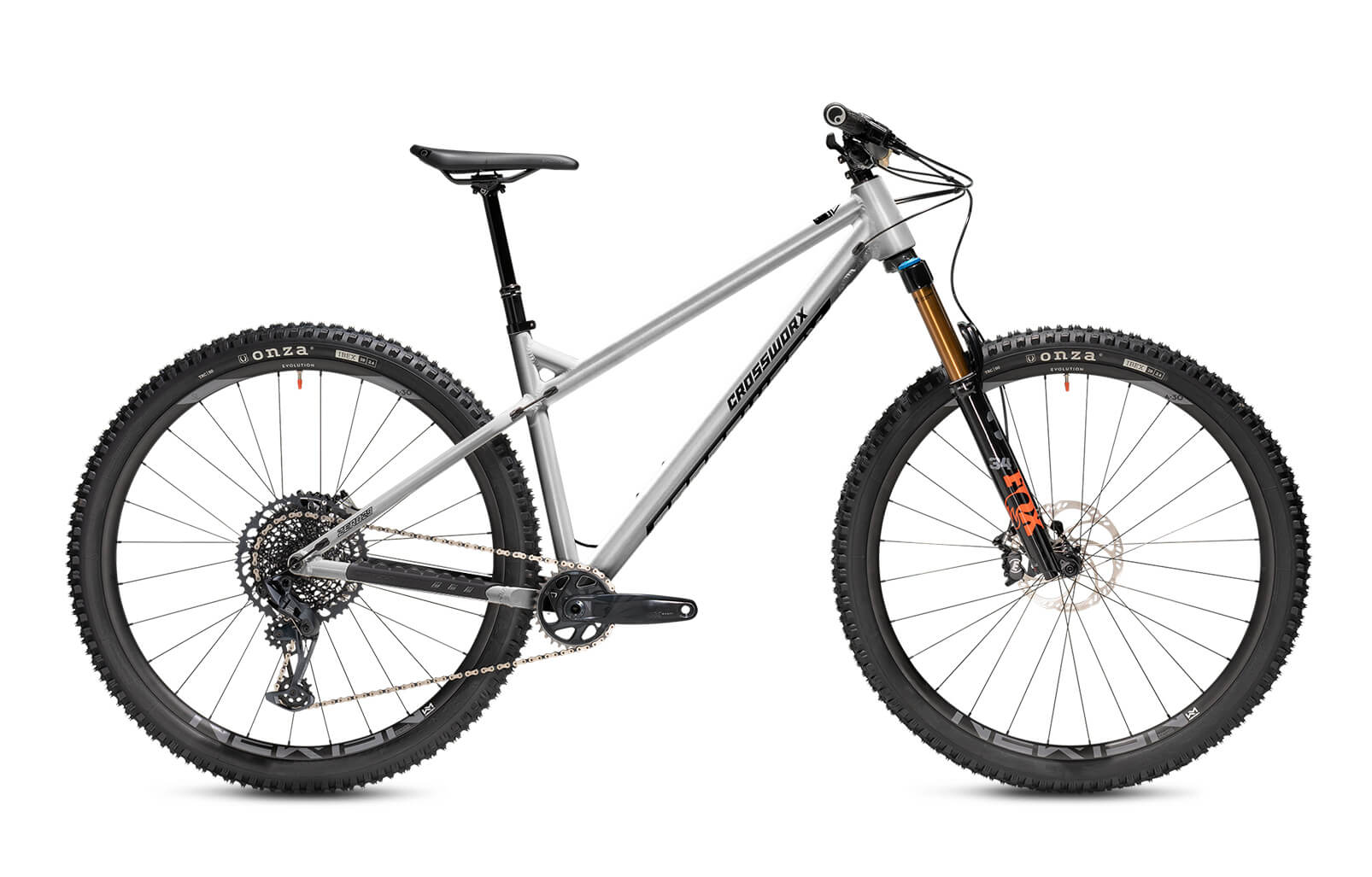

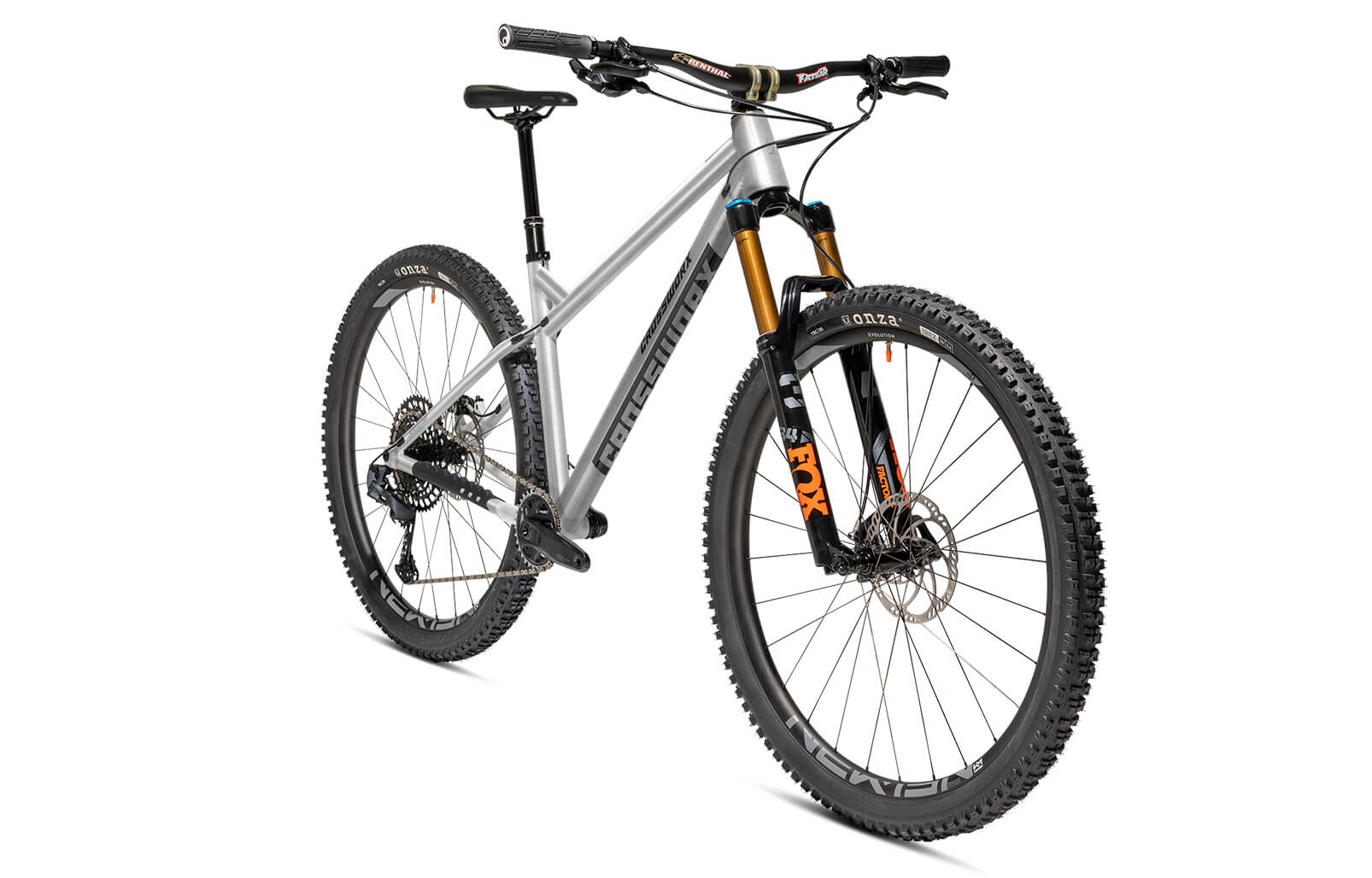

TRAIL HARDTAIL
ZERO290
29’’ wheels | 0 mm Rear
You love technical trails and never lose traction? Our CrossWorx ZERO290 is the playful hardtail that catapults you fast up the hill, but even faster down the mountain.
See all details at CROSSWORX-CYCLES.COM
Deals available on Formula Selva 140mm fork & Cura brakes
*All Frames are order only and can take 4-8 weeks, see below for details
*Currently we are only providing frames from Crossworx, but complete builds can be arranged.
*Our default shock option is either a Formula MOD coil or Nebbia air shock. But other shocks can be arranged on request. We can provide a deal on a Selva fork & Cura brakes to match.
Available in radiant raw and 8 standard colours. Special colour variants are available upon request for an upcharge of $350.
RADIANT RAW: take note, this really is raw. It is not a brushed or polished or clear coated raw. It is as the frame is after heat treatment and final BB and head tube facing. it will show all the imperfections of raw tubing and different shades of the raw aluminium material. This is really for those that love that RAW and industrial look. But also ideal if you want to brush or polish it your self.
8 standard colours:
- Yawning yellow
- Peaceful Petrol
- Racing Blue
- Vivacious Violet
- Beaming Black
- Gritty Grey
- Obese Orange
- Grassfresh Green
Note on stock and delivery times:
For any frame not in stock take note for delivery times: Crossworx lay out their production plan on the last day of the week for all ordered frames and produce the ordered frames in the following 1-2 weeks, if they have capacity. So frames can be ready at the end of that week for shipping. If a frame requires painting then it could take another 2 weeks.
Shipping from Germany is approx 2-4 weeks. So if we order a frame, expect turn around time to be around 4-8 weeks.
Specifications
| Material | Aluminium 7020 |
| Travel front / rear | 150 or 140 mm / 0 mm |
| seat tube diameter | 30,9mm |
|
Minimum insertion seatpost |
100mm |
| seat clamp diameter | 34,9mm |
| Headset | ZS 44/56 |
| Bottom Bracket | BSA 73mm |
| Brake | PM 180 |
| max. brake disc size |
203 mm |
| Rear hub width | 12 x 148 mm |
| Bottle cage | Yes |
| Fidlock Ready | Yes |
| ISCG05 | No |
| UDH ready | Yes |
| Dropper Post Ready | Yes |
| Max tire width | 29″ x 2,6″ / 27,5″ x 2,8″ |
| Weight (Raw, Size M) | 2,2 Kg |
| Weight Complete Bike (Raw, Size L, Standard Configuration) |
12,5 Kg |
Geometry
| M | L | XL | XXL | |
|---|---|---|---|---|
| Body Height | 157,5 cm – 170 cm | 167,5 cm – 180 cm | 177,5 cm – 190 cm | 187,5 cm – 200 cm |
| A – Horizontal Tube Length | 569 | 596 | 623 | 649 |
| B – Reach | 430 | 455 | 480 | 505 |
| C – Steering Angle | 64° | |||
| D – Seat Angle | 78 | |||
| E – Head Tube Length | 110 | 120 | 130 | 140 |
| F – Chain Stay Length | 435 | |||
| G – Wheel Base | 1200 | 1230 | 1256 | 1288 |
| H – Bottom Bracket Drop | 70 | |||
| I – Seat Tube Length | 430 | 450 | 470 | 490 |
| K – Fork Length | 561 | |||
| L – Stack | 653 | 662 | 671 | 679 |
| M – Standover | 776 | 780 | 784 | 785 |
| max. seatpost insert |
*All dimensions in mm unless otherwise stated
