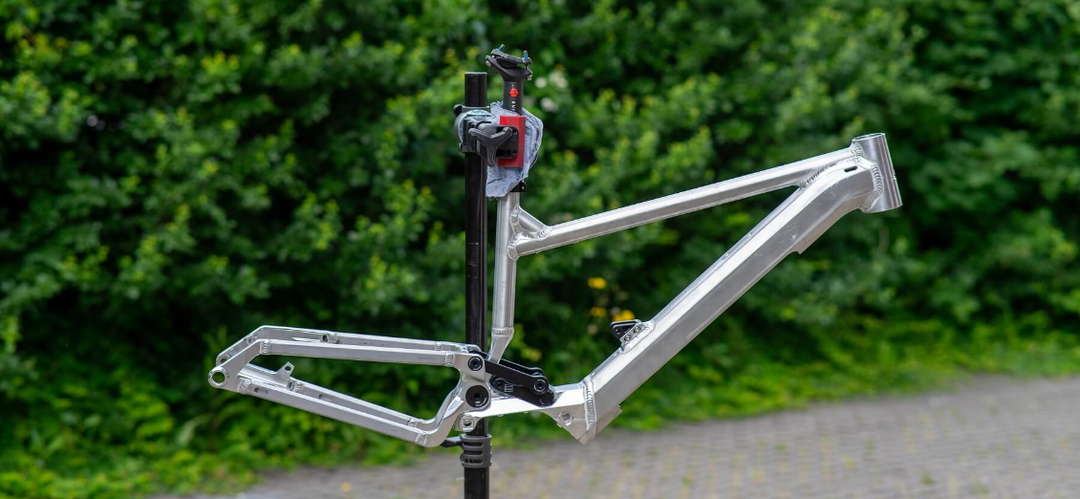

CrossWorx PACE - E-bike
- If not in stock, orders take approx. 3-4 weeks to arrive
Full Power Enduro E-MTB
PACE - Taking pre-orders ETA April 2026
29’’ or 27.5/29 wheels | 160 mm travel
***Frame only options listed, Complete builds can be arranged
With a generous 160 mm of suspension travel, impressive agility, and powerful propulsion, the PACE lets you master even the most demanding trails—both uphill and downhill. The quiet, barely noticeable motor support assists you exactly when you need it, allowing you to immerse yourself completely in the flow.
Experience unlimited riding pleasure, discover new paths and trails that remain inaccessible with a conventional bike.
PACE – feel the difference. Feel freedom on two wheels.
light-footed and agile
Curtains up for our new full-power e-bike: the PACE290 – uncompromising, powerful, and ready for any adventure.
The heart of our PACE290 is the rear suspension with 160 mm of travel, which delivers impressive traction thanks to a 230 x 65 mm shock. Whether on steep climbs or fast descents, the sensitive rear suspension ensures maximum grip and control on any terrain.
*All Frames are order only and can take 4-8 weeks, see below for details
*Currently we are only providing frames from Crossworx, but complete builds can be arranged.
*Our default shock option is either a Formula MOD coil or Nebbia air shock. But other shocks can be arranged on request. We can provide a deal on a Selva or Belva fork & Cura 4 brakes to match.
Available in radiant raw and 8 standard colours. Special colour variants are available upon request for an upcharge of $350.
RADIANT RAW: take note, this really is raw. It is not a brushed or polished or clear coated raw. It is as the frame is after heat treatment and final BB and head tube facing. it will show all the imperfections of raw tubing and different shades of the raw aluminium material. This is really for those that love that RAW and industrial look. But also ideal if you want to brush or polish it your self.
8 standard colours:
- Yawning yellow
- Peaceful Petrol
- Racing Blue
- Vivacious Violet
- Beaming Black
- Gritty Grey
- Obese Orange
- Grassfresh Green
Note on stock and delivery times:
For any frame not in stock take note for delivery times: CrossWorx lay out their production plan on the last day of the week for all ordered frames and produce the ordered frames in the following 1-2 weeks, if they have capacity. So frames can be ready at the end of that week for shipping. If a frame requires painting then it could take another 2 weeks.
Shipping from Germany is approx 2-4 weeks. So if we order a frame, expect turn around time to be around 4-8 weeks. Waiting on more motors, ETA into NZ April 2026
Specification
| material | Aluminium 7020 |
| travel front / rear | 170mm or 160mm / 160mm |
| shock / bushingsize | 230×65 / 22,2x8mm |
| Drive Unit | Bosch Performance Line CX |
| battery | 600wh Powertube |
| seattube diameter | 30,9mm |
|
minimum insertion seatpost |
100mm |
| seatclamp diameter | 34,9mm |
| headset | ZS 44/56 |
| breakmount standard | PM 180 |
| max. rotor size rear end | 203 mm |
| rear hub width | 12 x 148 mm |
| bottle mounts | 2 |
| Ranger Extender | yes, 250 WH (except for frame Size M) |
| ISCG05 | no |
| Dropper Post Ready | yes |
| max. tire width | 29″ x 2,4″ |
| weight (raw, size L) – frame | 3,95 Kg |
| weight (raw, size M) – frame incl. drive unit | 8,35 Kg |
| weight full bike (raw, size L, standard configuration) |
ab 23,9 Kg |
Geometry
| M | L | XL | Mullet 29″/27,5″ | |
| Body height | 165 – 177,5 cm | 175 – 187,5 cm | 185 – 197,5 cm | |
| A – Top Tube Length | 561 | 591 | 623 | |
| B – Reach | 450 | 480 | 510 | |
| C – Head Tube Angle | 64,5° | |||
| D – Seat Tube Angle | 79° | |||
| E – Head Tube Length | 120 | 120 | 130 | |
| F – Chainstay Length | 455 | 435 | ||
| G – Wheelbase | 1242 | 1272 | 1307 | -20 |
| H – BB Drop | 35 | 23,5 | ||
| I – Seat Tube Length | 380 | 425 | 465 | |
| J – Seat Tube Offset | 13 | |||
| K – Fork Length | 571 | |||
| L – Stack | 641 | 641 | 650 | |
| M – Stand Over Height | 790 | 794 | 799 | |
| max. Seatpost Insertion | 191 | 236 | 276 |
*All dimensions in mm unless otherwise stated, geometry based on 571 mm fork length.
