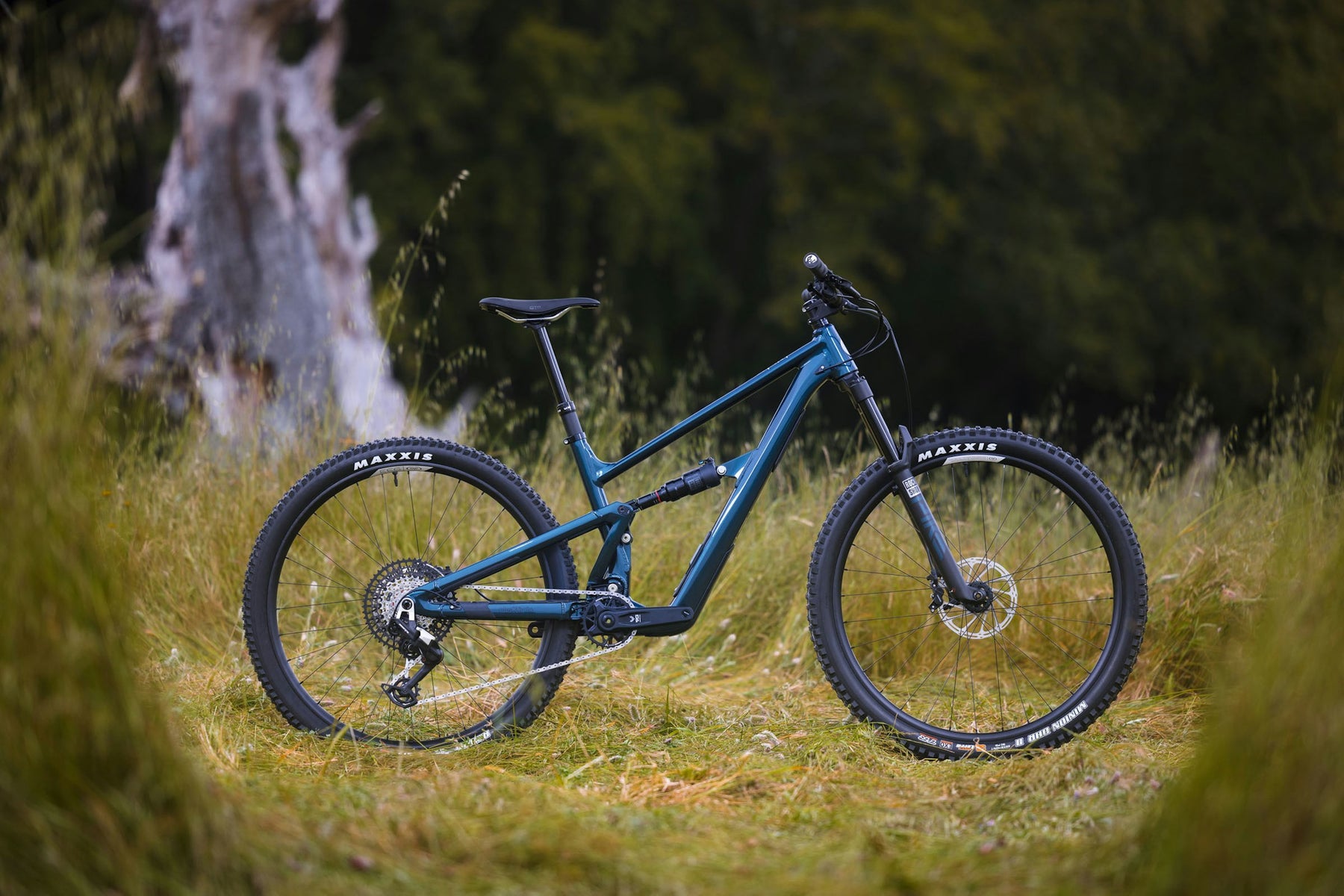

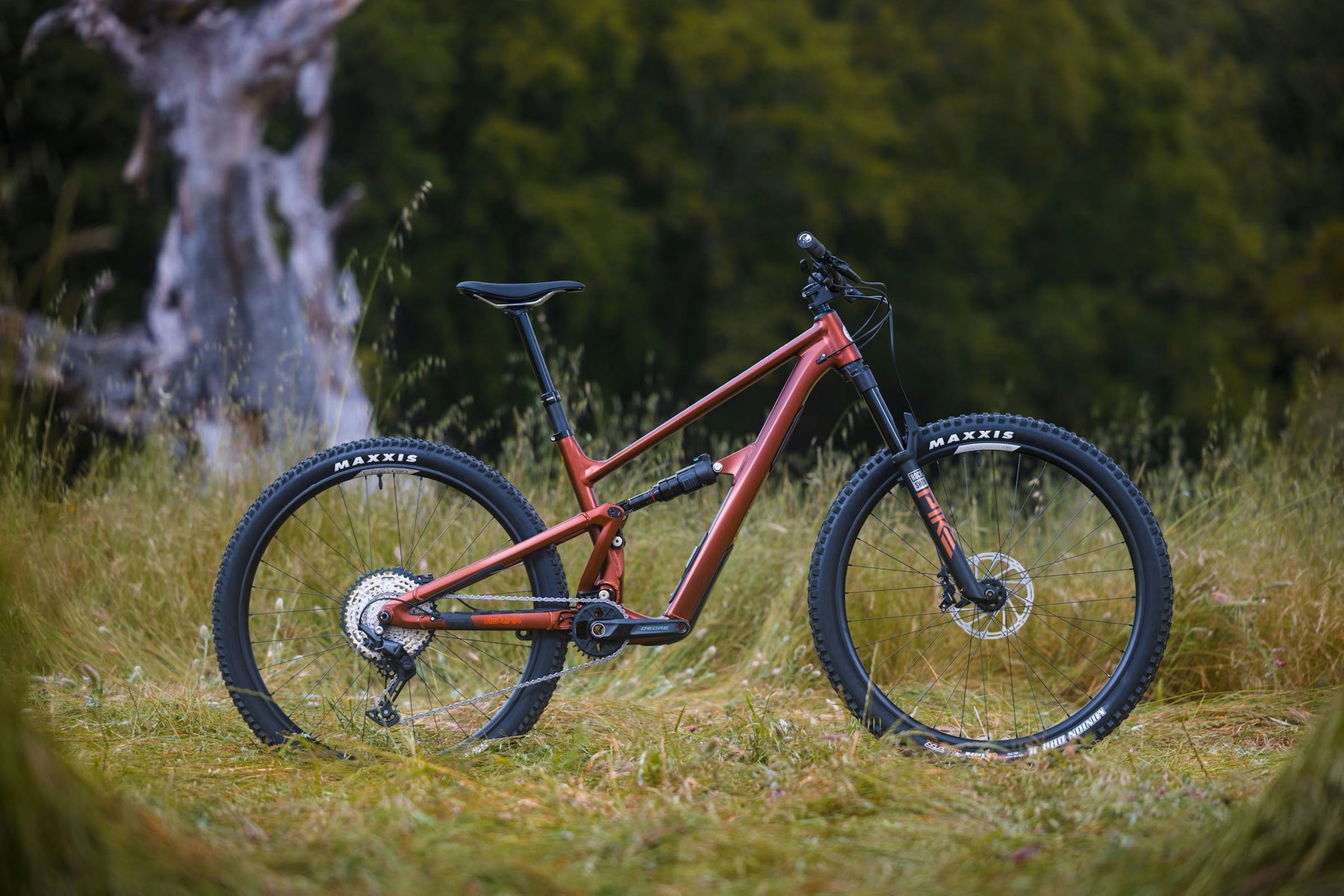

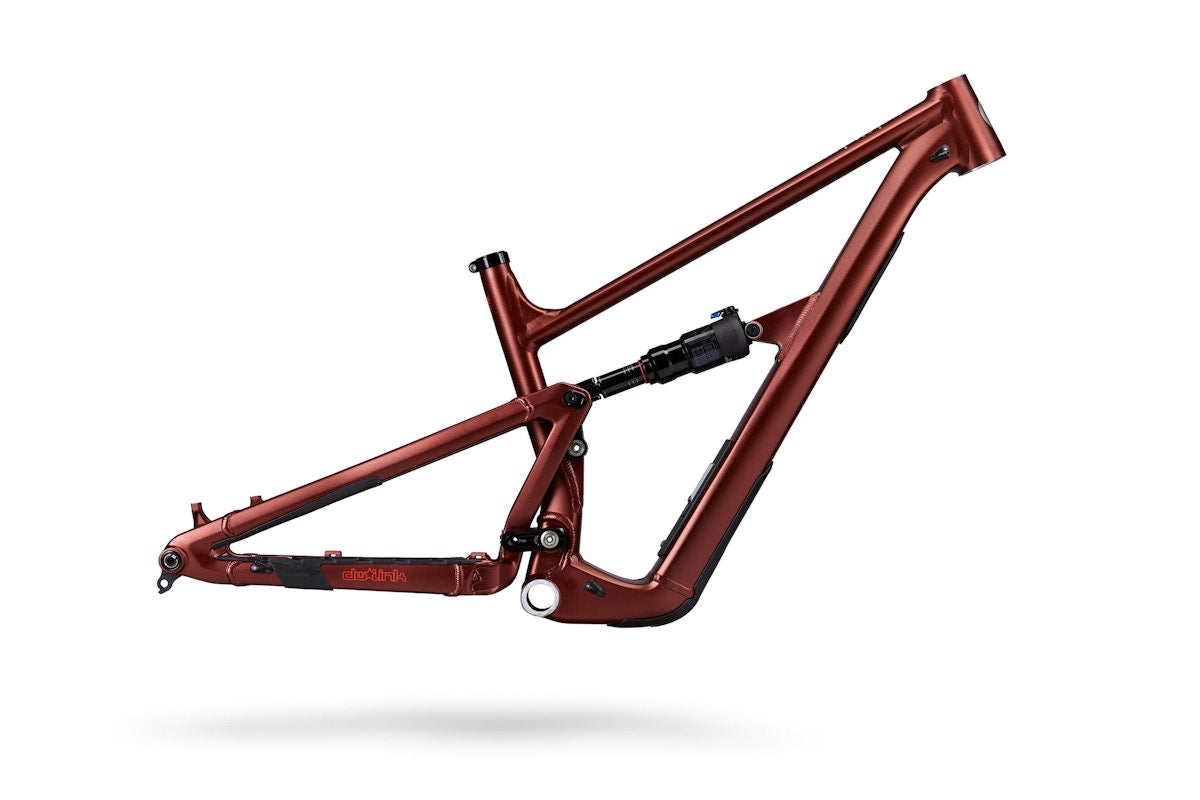

IBIS Ripley AF
- If not in stock, orders take approx. 3-4 weeks to arrive
130mm Rear Travel | 140mm Front Travel | 29"Wheels • MX Optional via Flip Chip | DW Link Suspension
Ripley is good AF at pretty much everything.
Perfect for both seasoned shredders and stoked newcomers, the newest AF version packs the same fast, playful feel the Ripley is known for — into a tough aluminum package that’s ready for anything.

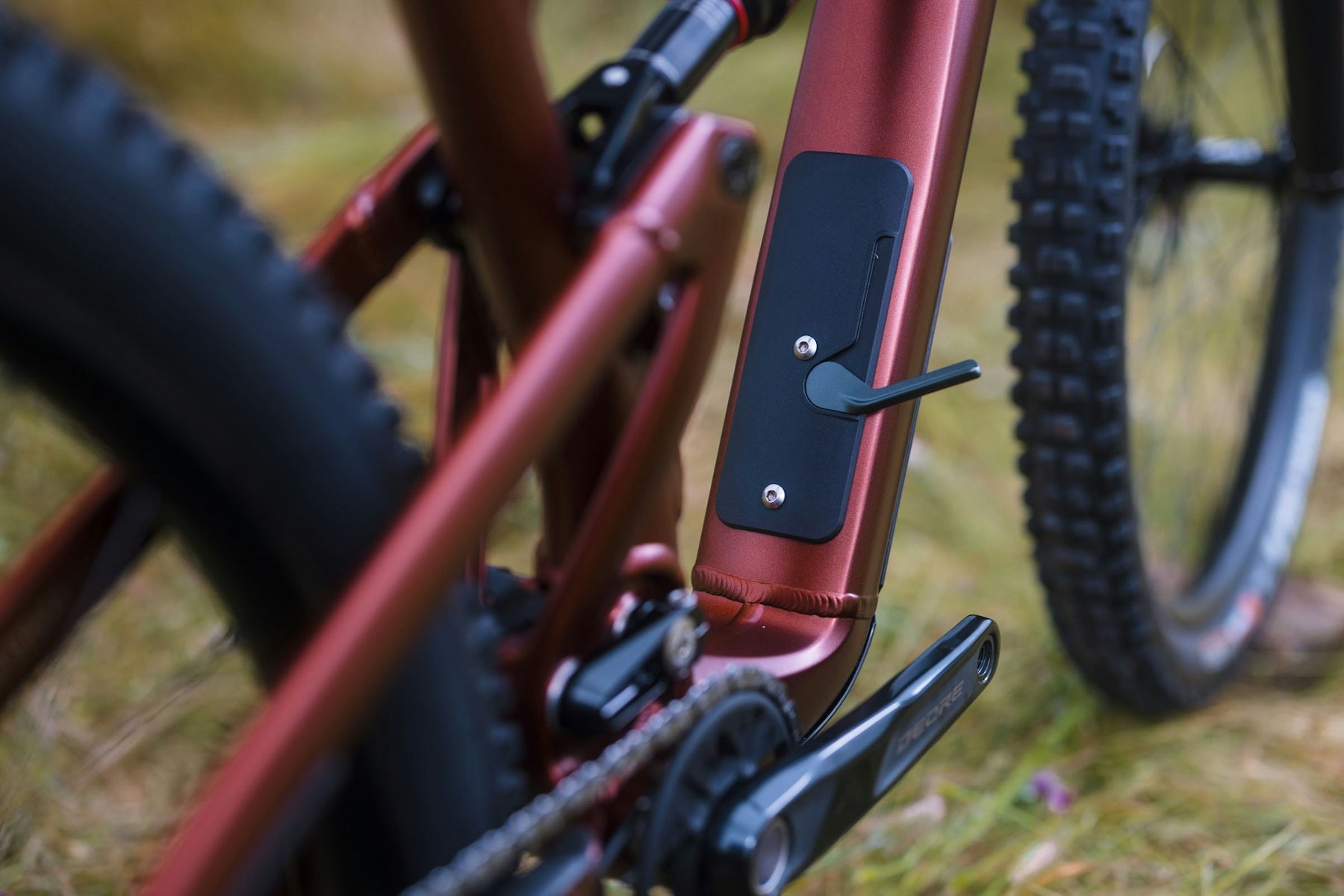

With 130mm of rear travel and 140mm up front, it climbs efficiently and descends way above its travel class. The confident progressive geometry gives it quick and responsive handling on tight trails while keeping things stable when the speed picks up. Designed for riders who value agility, capability, and all-around fun, the Ripley AF shares all the features of its carbon counterpart: dw-link suspension, 29” wheels front and rear, with flip chips to run a 27.5” rear wheel (if you’re into mullets), and in-frame storage with two included Ibis bags — for all your snacks and tools.
Starting at $4600, it brings everything you love about the Ripley to a more attainable price point. It’s fast. It's fun. It's unapologetically metal… AF.
**3-4 weeks delivery from order if stock available at IBIS USA

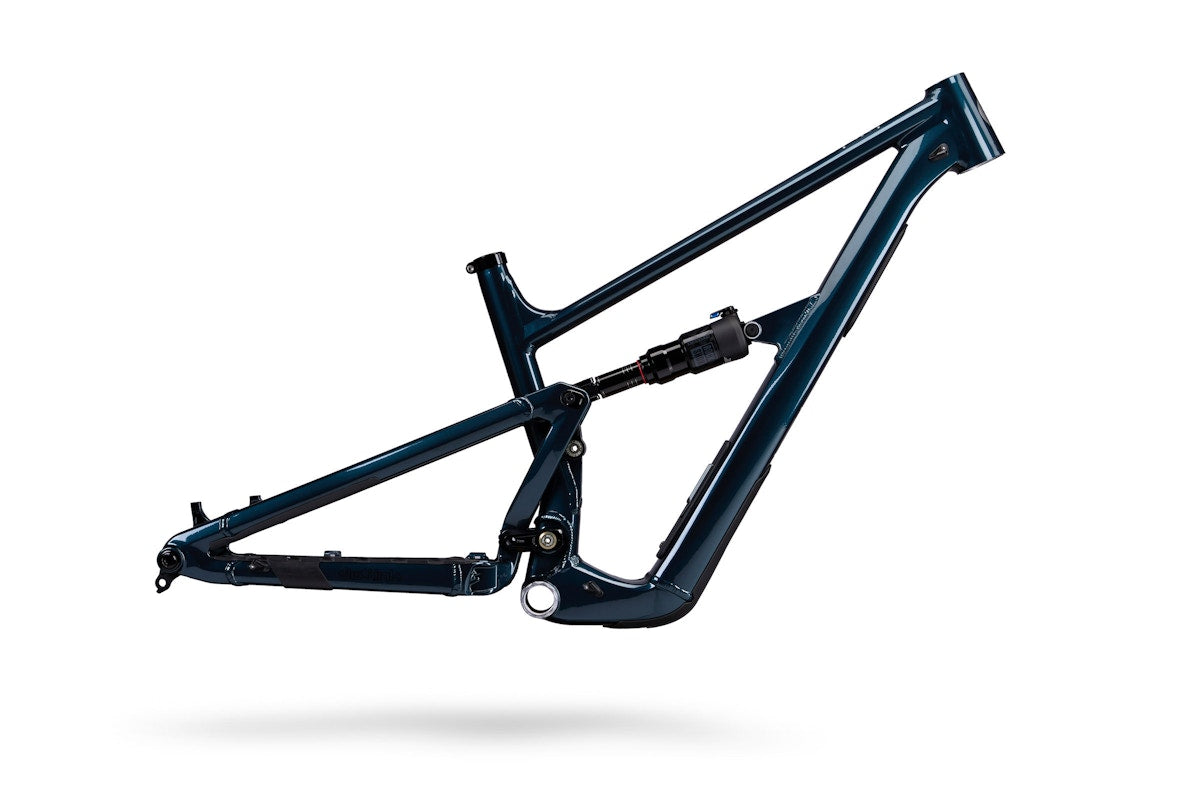

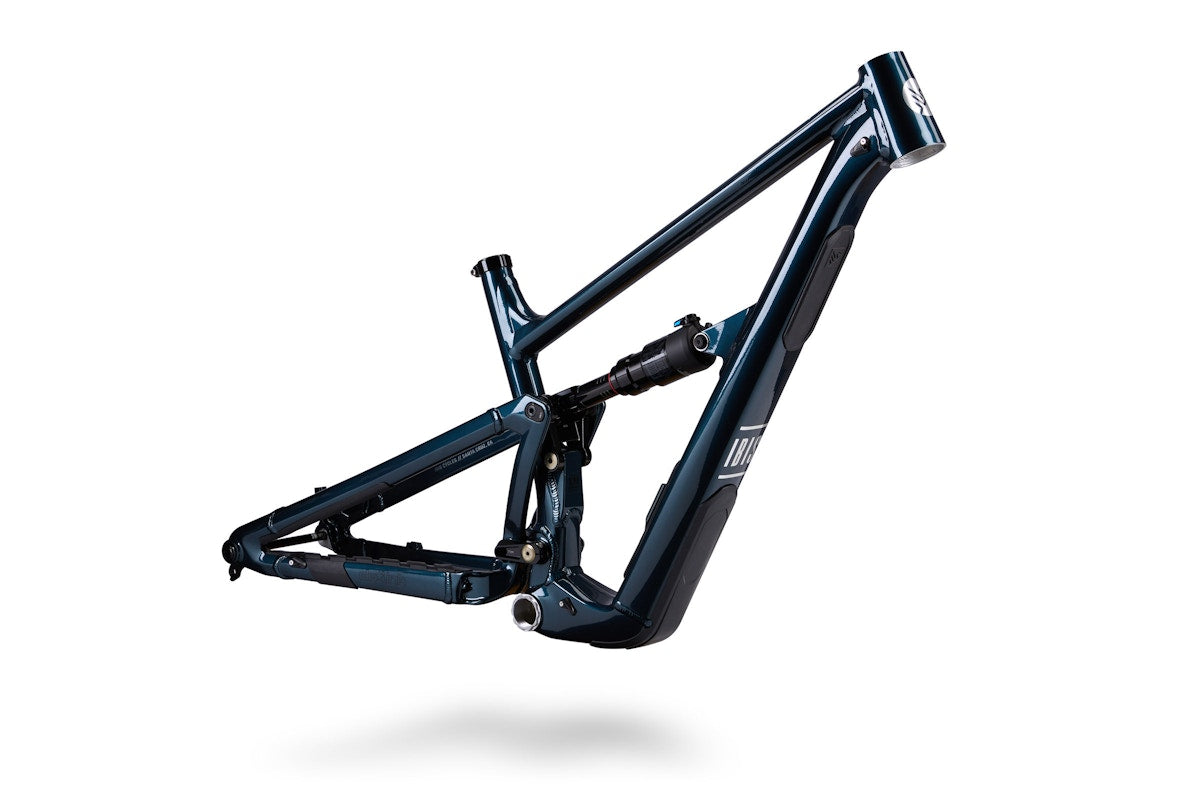

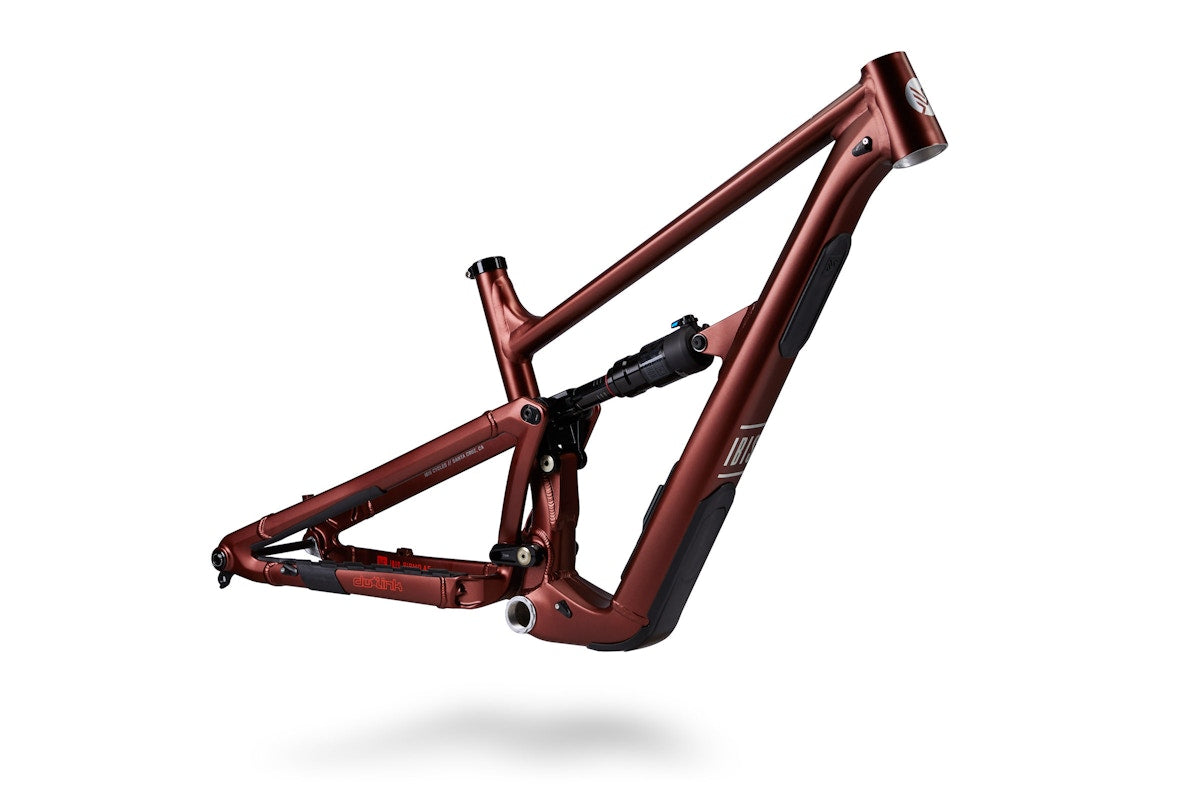

Frame & shock only or build kits available - Contact for more details
SRAM 90 $8300 - Deore $7600 - Or Frame Only - Full spec at IBIS Cycles website
Pick Your Size
Our ultra low standovers give you the ability to size your frame based on horizontal fit without worrying about vertical clearances.
140mm Fork (555mm axle to crown)
| Nominal Size | SM | MD | XM | LG | XL | |
|---|---|---|---|---|---|---|
| Seat Tube | A | 395 | 400 | 415 | 457 | 477 |
| Top Tube | B | 577 | 604 | 629 | 654 | 684 |
| Head Tube | C | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29" | D | 436 | 436 | 437 | 440 | 442 |
| Seat Tube Angle | E | 77.4° | 76.9° | 76.9° | 77.4° | 77.9° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | G | 64.9° | 64.9° | 64.9° | 64.9° | 64.9° |
| Wheelbase | H | 1187 | 1211 | 1241 | 1279 | 1321 |
| Stack | I | 613 | 619 | 629 | 640 | 650 |
| Reach | J | 440 | 460 | 483 | 511 | 545 |
| BB Height* | 326 | 329 | 332 | 335 | 338 | |
| BB Drop | K | 48 | 45 | 42 | 39 | 36 |
| Standover | L | 680 | 721 | 744 | 759 | 772 |
| Recommended Seatpost Drop | 140 | 170 | 185 | 213 | 213 | |
| Crank Length | 165 | 165 | 170 | 170 | 170 | |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | |
| Water Bottle Size | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
*With Maxxis 29x2.4 WT tires = 748mm diameter, 27.5x2.5 WT rear tires = 708mm diameter.

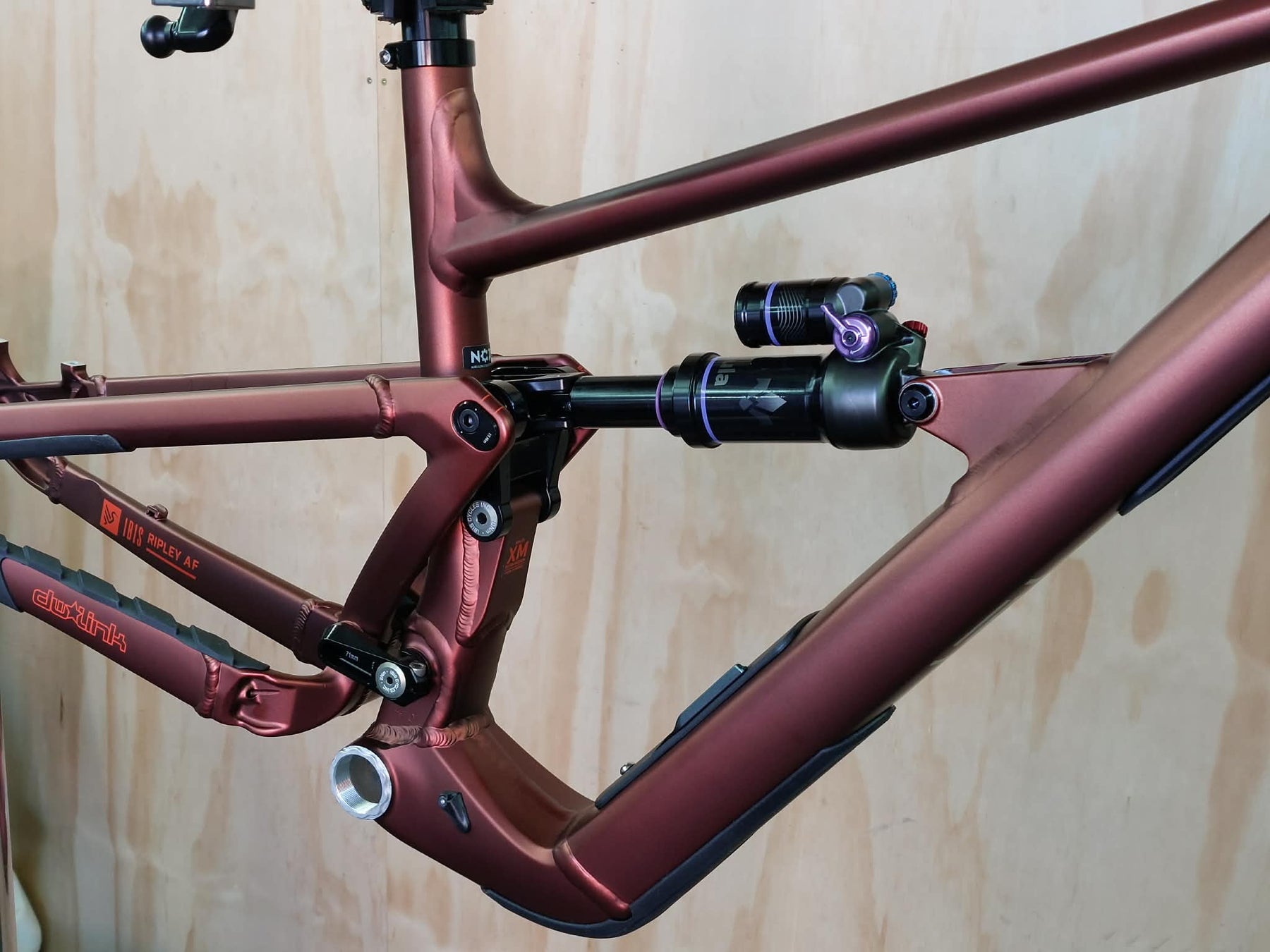

Available with a Formula Nebbia shock as a upgrade
Deals available on Formula Selva 140mm forks & Cura brakes to match
